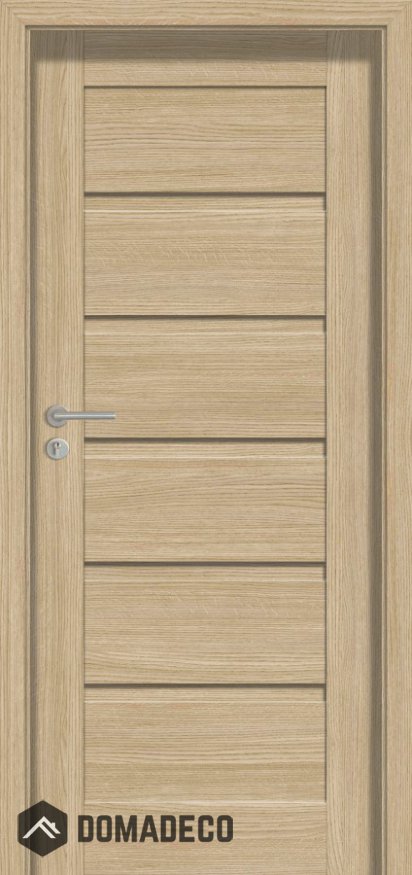

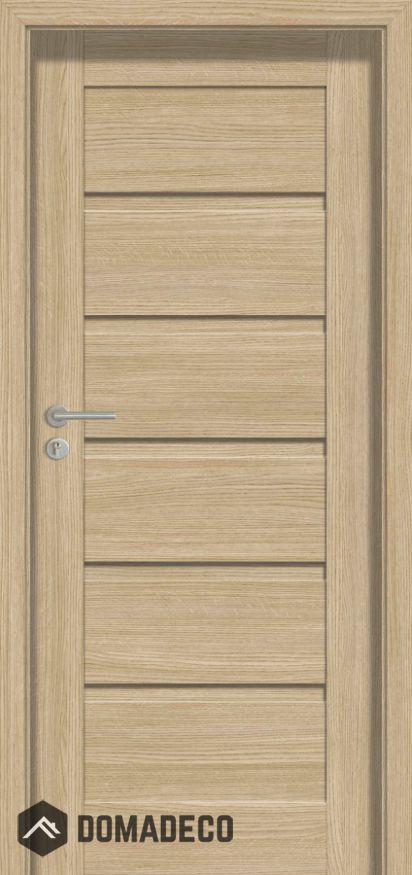

Plano ARC - solid interior door

Plano ARC
100% of 100

The price includes VAT

Click here to select the configuration

The door is made of a high-quality MDF rail and stile set covered with the ECO TOP, SILKSTONE surface with vertical wood grain. Panels have horizontal wood grain. W03, W07, W08 patterns with horizontal wood grain and W05, W06 patterns with vertical.
The top and the bottom edge of the door leaf is secured with veneer.


  • White/brown matt glass, 4 mm thick
  • Single-point mortise lock, key-operated, for cylinder, or for bathroom lock
  • Hinges: B type
  • The door closer is not applicable

Standard door leaf size:

62 cm x 202 cm
72 cm x 202 cm
82 cm x 202 cm
92 cm x 202 cm

Required Installation hole width:

62 cm x 202 cm - 676mm min installation hole width / 786 mm - max installation hole width
72 cm x 202 cm - 776mm min installation hole width / 886 mm - max installation hole width
82 cm x 202 cm - 876mm min installation hole width / 986 mm - max installation hole width
92 cm x 202 cm - 976mm min installation hole width / 1086 mm - max installation hole width

Required Installation hole height:

min installation hole height: 2053 mm
max installation hole height: 2112 mm

Required thickness of your wall

min 75 mm
max 300mm


white, oak, maple, nut, british oak, salinas oak, scandinavian oak, patina oak, silver oak, nougat oak, honey oak, polish oak, royal anthracite, royal merbau, polish ash tree


Right hand (RH), Left hand (LH),

ADDITIONAL EQUIPMENT (at an extra charge)

  • Non-standard door shortening (maximum available door shortening: up to 60 mm):
    door shorter to 30 mm (the lower element of the door has a nonstandard height)
    door shorter by 40-60 mm (the upper and the lower element of the door has a non-standard height)
  • Door lower by 50 mm
