Plano PASS - solid interior door

SKU
Plano PASS
Rating:
90 % of 100
AVAILABLE
£660.00

The price includes VAT & shipping

Click here to select the configuration

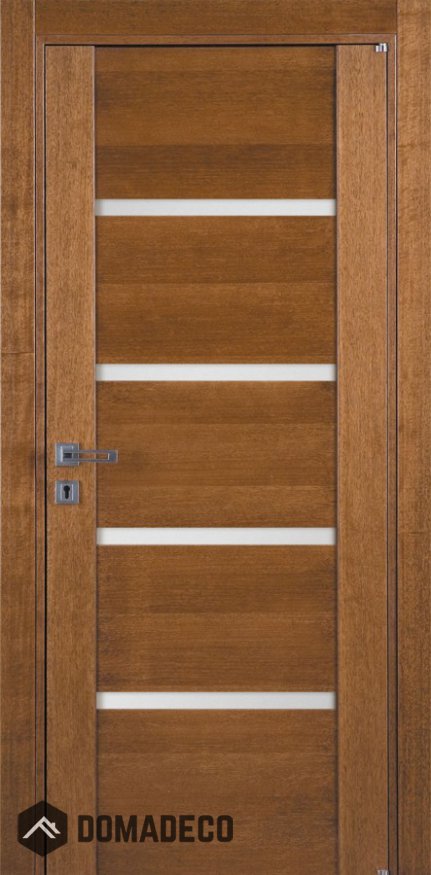

The door is made of a wooden rail and stile set topped with two flush HDF boards covered with natural veneer or LAMISTONE CPL surface finish.

STANDARD EQUIPMENT

  • White/brown matt glass, 4 mm thick
  • Magnetic mortise lock, key-operated, for a cylinder or a bathroom lock
  • Hinges: concealed type for the non-rebated system (“60”-“80” – 2 units; “90”– 3 units)
  • The door closer is not applicable

Standard door leaf size:

62 cm x 202 cm
72 cm x 202 cm
82 cm x 202 cm
92 cm x 202 cm

Required Installation hole width:

62 cm x 202 cm - 690mm min installation hole width / 792 mm - max installation hole width
72 cm x 202 cm - 790mm min installation hole width / 892 mm - max installation hole width
82 cm x 202 cm - 890mm min installation hole width / 992 mm - max installation hole width
92 cm x 202 cm - 990mm min installation hole width / 1092 mm - max installation hole width

min installation hole height: 2075 mm
max installation hole height: 2132 mm

REQUIRED THICKNESS OF YOUR WALL

min 75 mm
max 305mm

COLOUR:

258 white, 260 white oak, 263 premium walnut, 265 wenge, 289 grey, 312 limba, 334 european oak, 340 ebony, 376 steel oak, 377 platinum oak, 404 dark walnut, 405 light walnut, 421 cappucino, 422 mokka, 424 teak, 531 anthracite

OPENING WAY:

Right hand (RH), Left hand (LH),

ADDITIONAL EQUIPMENT (at an extra charge)

  • Non-standard door shortening available (up to 60 mm maximum):
    door shorter by 20 mm (the lower element of the door has a non-standard height)
    door shorter by 30-60 mm (the upper and the lower element of the door has a non-standard height)
  • Door lower by 55 mm
  • Ventilation trim
-
+
£660.00

The price includes VAT & shipping
