WIS BR77s - Roller shutter garage door

Garage doors are manufactured after the order has been placed through the website.

Garage doors - production takes 4 weeks

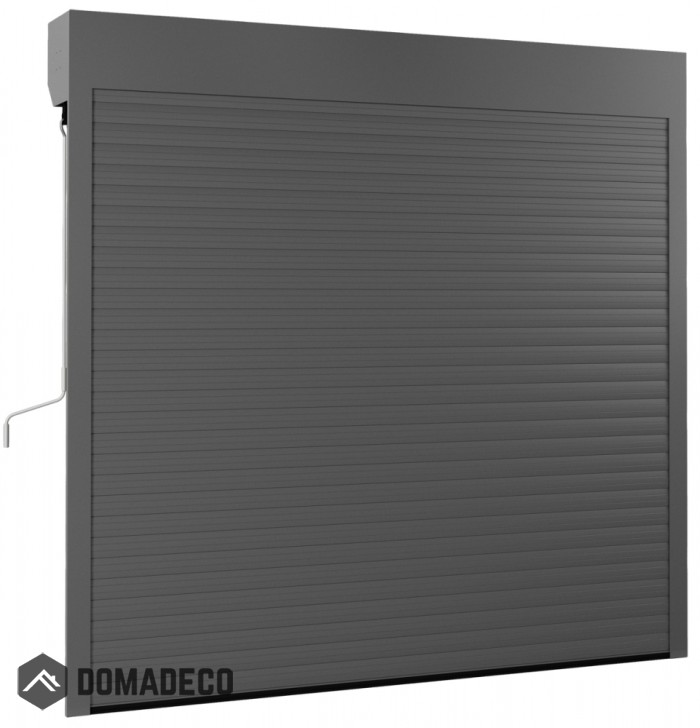

Roller shutter garage door is intended for use in single-family housing and utility rooms. The door is made of AW 77 aluminium profile filled with Freon-free polyurethane foam. The door is fitted with vertical aluminium profiles, and a case or partial cover of the winding shaft. The door shutter rolls up on a shaft located at the lintel, from inside of the building. The door is equipped with one-phase tubular drive, a switch to operate the door, and a crank for emergency opening. The door is sealed on all sides. The door is to be installed inside or outside the premises.

Technical details:

• Width of slats: 77 mm
• Thickness of slats: 18,5 mm
• Maximum size of a curtain  – 15 m²
• 13 slats per 1m of height
• 3 box sizes to choose:  250 mm x  250 mm;  350 mm x 300 mm; 350 mm x 350 mm

The roller gate is equipped with the SOMFY Rollixo RTS drive

requied mounting dimensions of the garage door:

minimum headroom size : 300 mm (3 in the picture)
minimum left side size: 110mm (2 in the picture)
minimum right side size: 110mm (2 in the picture)
minimum backroom size: 500mm (4 in the picture)

Requied hole in the wall:
width from 1800mm to 4500mm
height from: 1700mm to 4150mm
