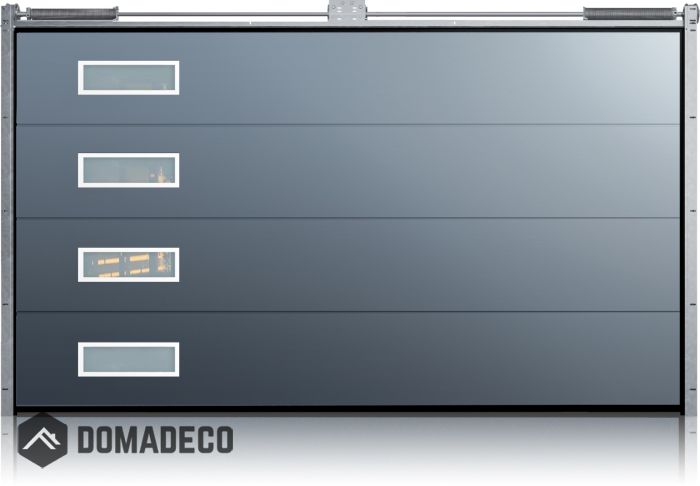

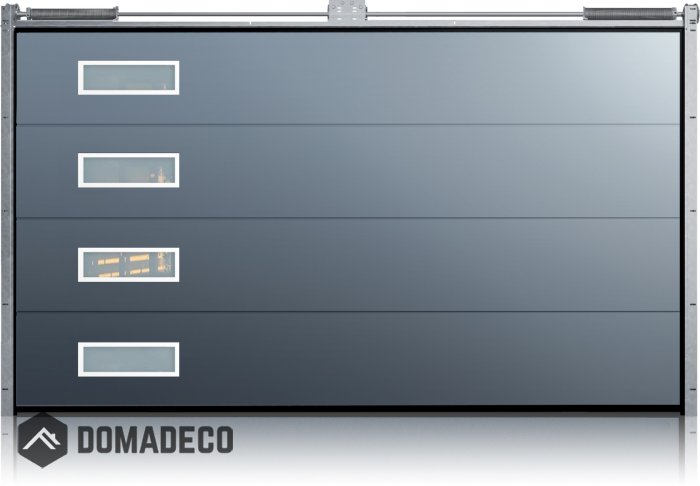

WIS E1R4 - insulated sectional garage door with windows

SKU

WIS E1R4

AVAILABLE

£1,895.00

The price includes VAT & shipping

Click here to select the configuration

Garage doors are manufactured after the order has been placed through the website.
Garage doors - production takes 4 weeks

Sectional doors is the most comfortable and convenient solution for your garage. Our doors are warm doors with the coefficient U similar to the one of the multi-chamber windows used for energy saving construction. Panels filled with polyurethane foam produced at our own factory and systems of seals contribute to this low coefficient.

Specification:

Torsion spring system designed for 20,000 cycles
Galvanized construction
stainless steel panel: 40 mm thickness filled with PUR polyurethane foam
Panel heat transfer coefficient Up=0.48 W/m2 K
Sound reduction index: Rc=23 dB
Rollers with bearings

The garage door set includes:
- Handle and key lock (manual gate)
- photocells (automatic gate)
- bolts,
- spring break protection,
- finger-crush protection panel
- rectangular windows 490mm x 155 mm

Requied mounting dimensions of the garage door:

minimum headroom size : 120 mm (3 in the picture)
minimum left side size: 90mm (2 in the picture)
minimum right side size: 90mm (2 in the picture)
minimum backroom size: 2675mm (4 in the picture)

Requied hole in the wall:
width from 2100mm to 5500mm
height from: 2000mm to 3000mm

width hole in the wall: (1)

Please write width from 2100 mm to 2300 mm

Please write width from 2301mm to 2500 mm

Please write width from 2501mm to 2700 mm

Please write width from 2701 mm to 2900 mm

Please write width from 2901 mm to 3100 mm

Please write width from 3101 mm to 3300 mm

Please write width from 3301 mm to 3500 mm

Please write width from 3501 mm to 3700 mm

Please write width from 3701 mm to 3900 mm

Please write width from 3901 mm to 4100 mm

Please write width from 4101 mm to 4300 mm

Please write width from 4301 mm to 4500 mm

Please write width from 4501 mm to 4700 mm

Please write width from 4901 mm to 5100 mm

Please write width from 5101 mm to 5300 mm

Please write width from 5301 mm to 5500 mm

height hole in the wall: (1)

Please write height from 2000 mm to 2100 mm

Please write height from 2100 mm to 2400 mm

Please write height from 2401 mm to 2500 mm

Please write height from 2501 mm to 2700 mm

Please write height from 2700 mm to 2900 mm

Please write height from 2901 mm to 3000 mm

Please write headroom size (3)

Please write left side size (2)

Please write right side size (2)

Colour:

Please fill in the number from the RAL palette

Automation systems:

Please write width from 4701 mm to 4900 mm

Photocells - security sensor at the bottom

Installation method

Glass type:

Place for windows looking from outside

Manual door Handle with lock and keys:
