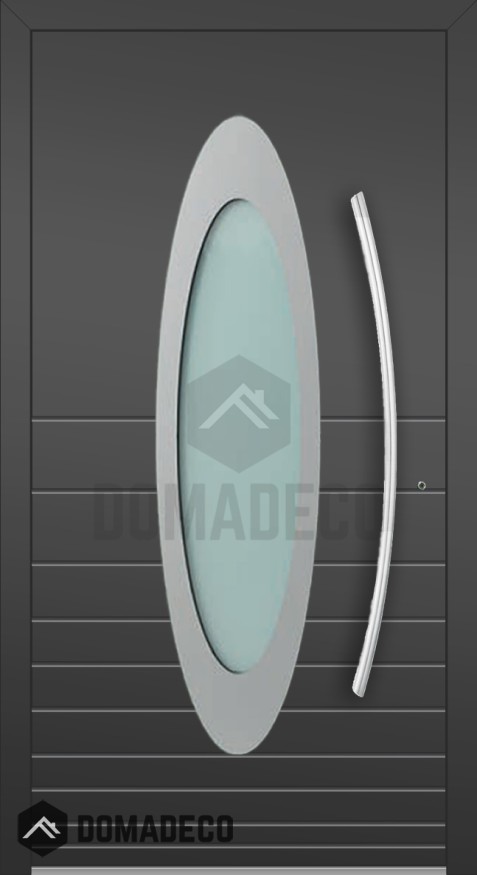

LIM C22 - secure modern aluminum front doors with oval glass

SKU
LIM C22
Be the first to review this product
AVAILABLE
£3,420.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 900mm to 1550mm
Height from: 2000mm to 2860mm

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a bigger size. View Pivot C22

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 70 mm
Thermal insulation: Ud = 0.7 W/(m2*K)
Sound insulation: 30dB

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£3,420.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM C22 - secure modern aluminum front doors with oval glass
Your Rating

The LIM C22 is a cutting-edge aluminum front door that seamlessly combines modern design with exceptional security features, making it an outstanding choice for contemporary residential and commercial properties. Engineered to deliver both aesthetic appeal and robust protection, this door stands as a testament to innovative craftsmanship and advanced materials technology.

Constructed from high-grade aluminum, the LIM C22 offers a lightweight yet incredibly strong frame that resists corrosion, warping, and the effects of harsh weather conditions. This ensures long-lasting durability and minimal maintenance, preserving the door’s sleek appearance and functionality over time. Aluminum’s inherent strength also allows for slim, clean lines that contribute to the door’s striking modern profile without sacrificing structural integrity.

One of the most distinctive features of the LIM C22 is its elegant oval glass insert, which adds a unique architectural element to the door’s contemporary design. The glass is manufactured using multi-layered, tempered, and insulated glazing techniques to provide superior thermal insulation, noise reduction, and enhanced safety. Depending on your preference, the glass panel can be customized with frosted, textured, or tinted finishes, allowing for privacy while still inviting natural light to brighten the entryway. This thoughtful integration of glass not only elevates the visual appeal but also creates a welcoming atmosphere at the doorstep.

Security is at the forefront of the LIM C22’s design philosophy. The door is equipped with advanced locking mechanisms, including multi-point locking systems and reinforced hinges, which offer formidable resistance against forced entry attempts. The aluminum frame is engineered to withstand significant impact, and the specially treated glass is shatter-resistant, providing an additional layer of defense. These features together ensure that the LIM C22 delivers peace of mind without compromising on style.

In addition to its security and design attributes, the LIM C22 is crafted for optimal energy efficiency. The combination of insulated glass and precise sealing reduces heat transfer, helping to maintain comfortable indoor temperatures and lower energy costs throughout the year. This makes the door an environmentally conscious choice that aligns with modern sustainability standards.

Installation of the LIM C22 is straightforward, thanks to its precision-engineered components and adaptable design, which fits a variety of architectural styles and door frames. The door’s surface finishes are resistant to fading, scratches, and corrosion, ensuring that it retains its fresh, contemporary look even in high-traffic areas or challenging climates.

Customization options are abundant with the LIM C22. Homeowners and designers can select from a wide range of color finishes, including matte and glossy options, as well as various hardware styles and finishes to match the overall aesthetic of the property. This flexibility allows the LIM C22 to seamlessly integrate into diverse design schemes, from minimalist modern to more eclectic contemporary settings.

In summary, the LIM C22 secure modern aluminum front door with oval glass is an exceptional entrance solution that marries style, security, and performance. Its sophisticated design, combined with durable materials and advanced security features, makes it the perfect choice for those seeking a front door that commands attention while providing reliable protection and energy efficiency. Whether for a stylish home or a professional environment, the LIM C22 elevates the entry experience with elegance and confidence.
