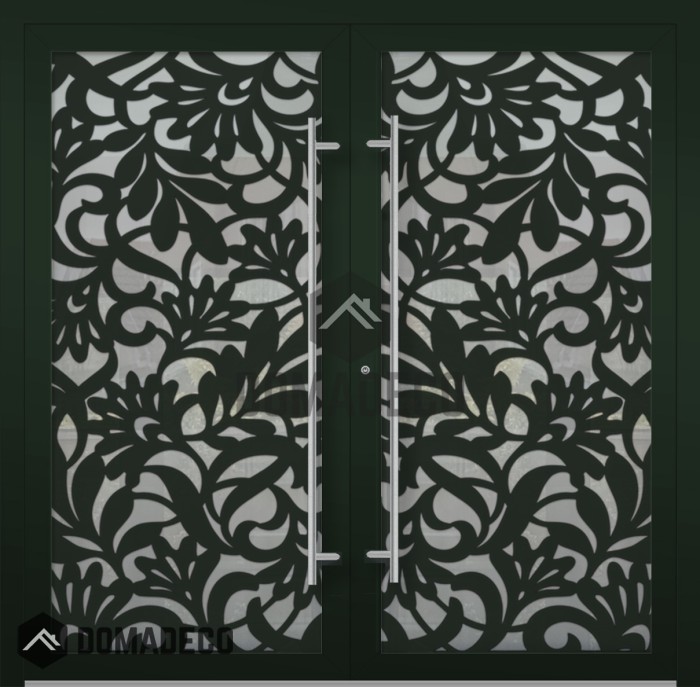

LIM G1 double - Double glass aluminium door with decorative panel

SKU
LIM G1 double
Be the first to review this product
AVAILABLE
£8,480.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 1600mm to 2600mm
Height from: 2000mm to 2440mm

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 48 mm
Thermal insulation: Ud = 1.2 W/(m2*K)

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£8,480.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G1 double - Double glass aluminium door with decorative panel
Your Rating

The LIM G1 Double is a premium double glass aluminium door that effortlessly blends modern design with exceptional functionality, making it the perfect choice for both residential and commercial properties seeking to elevate their entrance aesthetics. This door is expertly crafted to offer not only a striking visual appeal but also superior durability, security, and energy efficiency, ensuring it meets the demands of contemporary architecture and lifestyle.

Constructed from high-quality aluminium, the LIM G1 Double door boasts outstanding strength while remaining lightweight and corrosion-resistant. The aluminium frame incorporates advanced thermal break technology, which significantly reduces heat transfer between the interior and exterior, enhancing the door’s insulation properties. This feature helps maintain comfortable indoor temperatures year-round and contributes to energy savings by minimizing the need for excessive heating or cooling.

At the heart of the LIM G1 Double door are its elegant double glass panels, designed to flood interiors with natural light and create a seamless connection between indoor and outdoor spaces. These panels are made from durable tempered or laminated safety glass, providing excellent security and resistance against impact. Available in a variety of finishes—including clear, frosted, tinted, and decorative glass options—the door allows for customizable privacy levels without compromising on style. The double glazing also delivers superior acoustic insulation, reducing external noise and enhancing indoor comfort.

A standout feature of the LIM G1 Double door is its decorative panel, which adds a unique, artistic touch that can be tailored to suit a wide range of architectural styles. Whether you prefer sleek, minimalist designs or intricate patterns, the decorative panel transforms the door into a distinctive focal point that complements the overall aesthetic of your property. This customization option ensures that every LIM G1 Double door is as individual as the space it enhances.

Security is a top priority in the design of the LIM G1 Double aluminium door. It is equipped with a robust multi-point locking system that secures the door firmly at multiple points along the frame, providing enhanced protection against unauthorized entry. Reinforced hinges and sturdy aluminium profiles further contribute to the door’s strength and reliability. For added convenience, the door can be integrated with modern smart lock technologies, allowing for keyless access and remote control capabilities.

In addition to its aesthetic and security benefits, the LIM G1 Double door is engineered for excellent weather resistance and low maintenance. High-quality seals and gaskets ensure airtightness, preventing drafts, water infiltration, and noise pollution. The aluminium surface is treated with durable finishes that resist fading, scratching, and corrosion, maintaining the door’s pristine look with minimal effort over time.

Installation of the LIM G1 Double door is carried out by experienced professionals to guarantee a perfect fit and smooth operation. Its versatile design makes it suitable for a variety of applications—from grand main entrances to coordinated façade systems—adding value and sophistication to any building.

In summary, the LIM G1 Double double glass aluminium door with decorative panel represents a harmonious fusion of style, security, and efficiency. It is a smart investment for those seeking a durable, energy-efficient, and visually stunning entrance solution that will enhance the character and functionality of their property for years to come.
