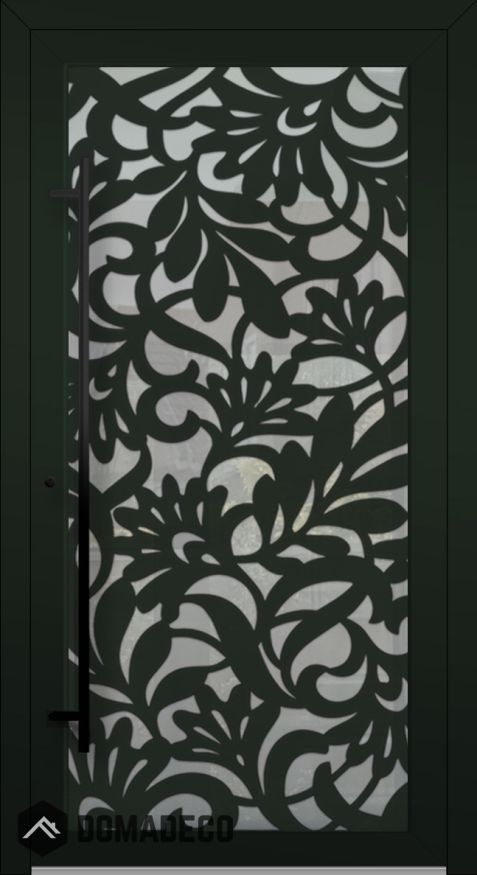

LIM G1 - Glass aluminium door with decorative panel

SKU
LIM-G1
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£4,240.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 900mm to 1295mm
Height from: 2000mm to 2440mm

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a bigger size. View Pivot G1

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 48 mm
Thermal insulation: Ud = 1.2 W/(m2*K)

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£4,240.00

The price includes VAT & shipping

Wish List
Email

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G1 - Glass aluminium door with decorative panel
Your Rating

The LIM G1 Glass Aluminium Door with Decorative Panel is a premium entrance solution that combines modern design, durability, and functionality to elevate any architectural space. Crafted with precision, this door is perfect for both residential and commercial properties, offering an elegant balance between transparency and privacy while enhancing the overall aesthetic appeal of your building.

At the heart of the LIM G1 door is a robust aluminium frame, known for its exceptional strength, lightweight nature, and resistance to corrosion. This ensures long-lasting performance even in harsh weather conditions, making it a reliable choice for exterior applications. The slim profile of the aluminium frame maximizes the glass area, allowing an abundance of natural light to enter the interior spaces while maintaining structural integrity and security.

The standout feature of the LIM G1 is its expansive glass panel, which not only provides a contemporary and sleek look but also offers excellent visibility and openness. The glass used is typically tempered or laminated to ensure safety and durability, reducing the risk of breakage and enhancing security. Additionally, options such as Low-E coatings improve energy efficiency by minimizing heat transfer, helping to maintain comfortable indoor temperatures and reduce energy costs.

Adding a unique touch to this door is the decorative panel, which introduces a layer of artistic expression and customization. Available in a variety of designs, textures, and finishes, the panel can be tailored to complement the architectural style of any building. Whether featuring intricate geometric patterns, elegant metallic inlays, or subtle etched motifs, the decorative panel transforms the door from a simple entryway into a striking focal point that reflects personal taste and design vision.

The LIM G1 door is engineered with user convenience and security in mind. It incorporates high-quality locking mechanisms and hardware to provide robust protection against unauthorized access. Smooth-operating hinges and ergonomically designed handles ensure ease of use, while optional features such as weather stripping, thermal breaks, and sound insulation enhance comfort by protecting against drafts, noise, and temperature fluctuations.

Sustainability is also a key consideration in the design of the LIM G1 Glass Aluminium Door. The aluminium frame is fully recyclable, and the manufacturing process adheres to environmentally responsible standards. This commitment to eco-friendly materials and energy-efficient technologies makes the LIM G1 an excellent choice for those seeking to reduce their environmental footprint without compromising on style or performance.

In summary, the LIM G1 Glass Aluminium Door with Decorative Panel is a versatile and elegant entrance solution that combines modern aesthetics, superior durability, and customizable design elements. Its sleek aluminium frame, expansive safety glass, and artistic decorative panel work harmoniously to create an inviting, secure, and visually captivating entryway. Ideal for contemporary homes, offices, and commercial buildings, the LIM G1 door elevates any space with its blend of innovation and timeless style.
