LIM G3 - Glass aluminium door with decorative panel

SKU
LIM-G3
Rating:
100 % of 100
AVAILABLE
£4,240.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 900mm to 1295mm
Height from: 2000mm to 2440mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

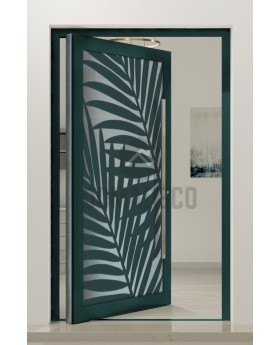

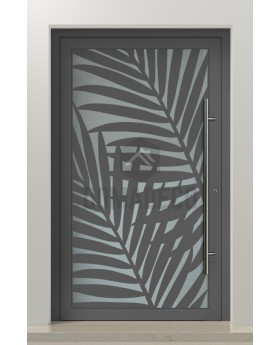

You can order this door model in a bigger size. View Pivot G3

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 48 mm
Thermal insulation: Ud = 1.2 W/(m2*K)

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.

Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£4,240.00

The price includes VAT & shipping

We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G3 - Glass aluminium door with decorative panel
Your Rating

The LIM G3 glass aluminum door with decorative panel is a sophisticated and contemporary entrance solution that seamlessly combines aesthetic appeal with exceptional durability and security. Designed for both residential and commercial applications, this door offers a perfect harmony of modern design elements and practical features, making it an excellent choice for those looking to elevate the style and functionality of their entryways.

Crafted from high-quality aluminum, the LIM G3 door boasts a lightweight yet incredibly strong frame that resists corrosion, rust, and the harsh effects of weather over time. This ensures a long-lasting product that maintains its structural integrity and sleek appearance even in demanding environments. The aluminum frame is precision-engineered to support large glass panels securely, creating an open and inviting look while providing the strength needed for daily use and enhanced security.

At the heart of the LIM G3 door is its stunning glass component, made from tempered or laminated safety glass. This type of glass is designed to withstand impact and resist shattering, ensuring safety for all users. The glass panels allow natural light to flood interior spaces, creating a bright and welcoming atmosphere that enhances the overall ambiance of any room. Additionally, the glass can be customized with various finishes, including frosted, tinted, or textured options, to balance privacy needs with the desire for an elegant, modern aesthetic.

A defining feature of the LIM G3 door is its decorative panel, which adds a unique artistic dimension to the design. These panels are meticulously crafted with intricate patterns or geometric designs that complement the sleek aluminum and glass elements. The decorative panel not only enhances visual interest but also allows homeowners and designers to express personal style and complement the architectural character of the building. Whether the preference is for minimalist lines or more elaborate motifs, the LIM G3 offers versatile options to suit diverse tastes.

Security is paramount in the design of the LIM G3 door. It comes equipped with advanced locking mechanisms and reinforced hardware that work together to provide a secure barrier against unauthorized entry. The strength of the aluminum frame combined with the toughness of the safety glass ensures that the door is both beautiful and highly secure. Furthermore, the door’s tight seals contribute to excellent thermal insulation and soundproofing, helping to maintain comfortable interior environments and reduce energy costs through improved efficiency.

Maintenance of the LIM G3 door is straightforward, thanks to the durable materials and high-quality finishes used throughout its construction. The aluminum frame features protective coatings that guard against fading, scratching, and environmental damage, preserving its pristine look with minimal upkeep. Routine cleaning with mild detergent and water is all that is needed to keep the door looking fresh and new for years to come.

The LIM G3 door offers extensive customization possibilities, allowing clients to select frame colors, glass finishes, and decorative panel designs that best align with their aesthetic preferences and functional requirements. This adaptability makes the LIM G3 an ideal choice for a wide range of architectural styles, from modern urban homes to elegant commercial spaces seeking a distinctive entrance solution.

In summary, the LIM G3 glass aluminum door with decorative panel is a masterful blend of style, strength, and security. Its elegant combination of durable aluminum framing, high-quality glass, and artistic decorative detailing creates an impressive entrance that enhances curb appeal and provides lasting performance. For those seeking a door that makes a bold design statement while delivering reliable protection and comfort, the LIM G3 stands out as an outstanding option.
