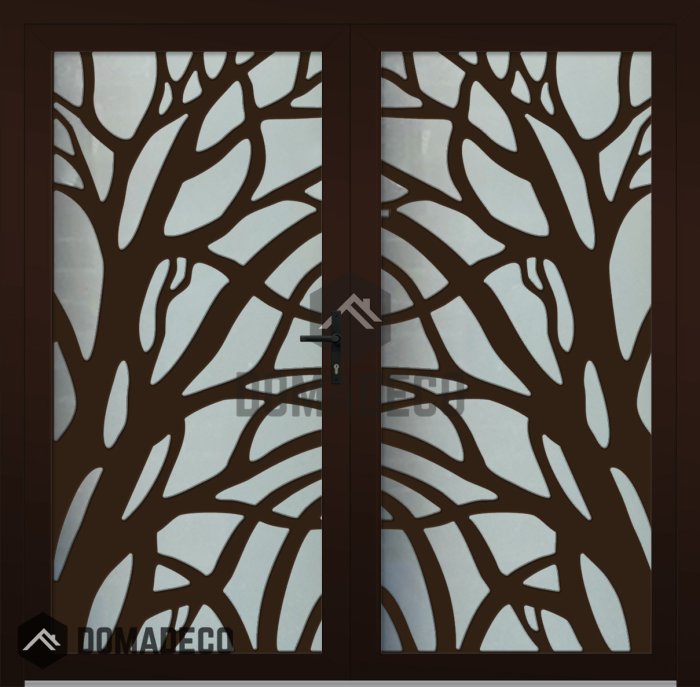

LIM G4 double - Double glass aluminium door with decorative panel

SKU
LIM G4 double
AVAILABLE
£8,480.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 1600mm to 2600mm
Height from: 2000mm to 2440mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 48 mm
Thermal insulation: Ud = 1.2 W/(m2*K)

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.

Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£8,480.00

The price includes VAT & shipping

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G4 double - Double glass aluminium door with decorative panel
Your Rating

The LIM G4 Double is an exquisite double glass aluminum door that combines modern aesthetics with exceptional durability and functionality. Designed to elevate the look and performance of any space, this door is crafted from high-quality aluminum, renowned for its strength, lightweight properties, and resistance to corrosion. The sleek aluminum frame provides a contemporary finish that complements a wide range of architectural styles, from minimalist modern homes to sophisticated commercial buildings. Its robust construction ensures long-lasting performance, making it an ideal choice for both interior and exterior applications.

At the heart of the LIM G4 Double door are its double glass panels, which offer superior thermal and acoustic insulation. These expertly engineered glass panels help to maintain comfortable indoor temperatures by minimizing heat transfer, leading to increased energy efficiency and reduced utility costs. Additionally, the double glazing significantly reduces outside noise, creating a peaceful and serene environment inside. The glass is toughened for enhanced safety and security, providing peace of mind without sacrificing natural light or style. This combination of functionality and design makes the LIM G4 Double door a smart, sustainable choice for any property.

One of the standout features of the LIM G4 Double door is its decorative panel, which adds a unique and elegant touch to the overall design. Available in a variety of patterns, textures, and finishes, the decorative panel can be customized to suit personal tastes and complement different interior and exterior design themes. Whether you prefer a sleek, modern look or a more traditional, ornate style, the decorative panel enhances the door’s visual appeal and adds character to your space. This thoughtful design element transforms the door from a functional entryway into a captivating focal point.

The double door configuration of the LIM G4 offers generous access and an inviting entrance, perfect for spaces that require wide openings such as patios, lobbies, or main entrances. The doors operate smoothly with high-quality hardware and secure locking mechanisms, ensuring ease of use and enhanced security. Thanks to the durable aluminum frame, the doors resist warping, denting, and weather-related damage, maintaining their pristine appearance and functionality over time. This combination of strength and elegance makes the LIM G4 Double door a reliable and stylish solution for busy environments.

Versatility is another hallmark of the LIM G4 Double door. Its design and construction make it suitable for a variety of settings, including residential homes, commercial offices, retail storefronts, and hospitality venues. The door’s energy-efficient features and use of sustainable materials align with green building practices, contributing to environmental responsibility while enhancing property value. Whether you seek to upgrade your home’s main entrance or add a sophisticated touch to a commercial space, the LIM G4 Double door offers unmatched performance and aesthetic appeal.

In summary, the LIM G4 Double double glass aluminum door with decorative panel is the perfect blend of innovation, style, and durability. It provides exceptional thermal and acoustic insulation, customizable design options, and robust security features, making it an excellent choice for any modern architectural project. With its elegant appearance and superior functionality, the LIM G4 Double door promises to enhance your space with lasting beauty and dependable performance for years to come.
