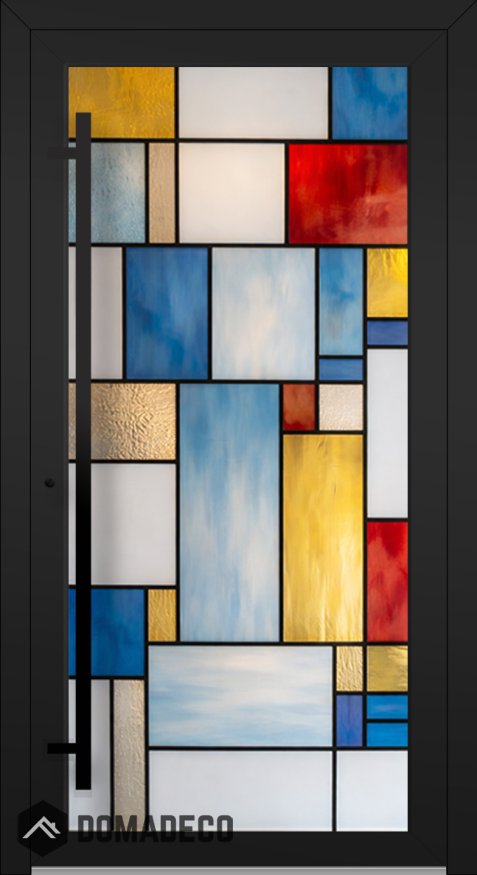

LIM SG1 - Stained Glass external aluminium door

SKU
LIM SG1
Be the first to review this product
AVAILABLE
£4,870.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 900mm to 1295mm
Height from: 2000mm to 2440mm

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a bigger size. View Pivot FS1

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 48 mm
Thermal insulation: Ud = 1.2 W/(m2*K)

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£4,870.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM SG1 - Stained Glass external aluminium door
Your Rating

The LIM SG1 - Stained Glass External Aluminum Door is an exquisite fusion of artistic elegance and modern engineering, designed to make a lasting impression on any exterior entrance. Ideal for discerning homeowners and architects alike, this door combines the timeless beauty of stained glass with the durability and sleekness of high-quality aluminum, offering a perfect balance between aesthetic appeal, security, and functionality. Whether you are renovating a classic home or enhancing a contemporary building, the LIM SG1 door serves as a stunning centerpiece that elevates curb appeal and invites natural light with grace and sophistication.

At the heart of the LIM SG1 is its intricately crafted stained glass panel, which transforms your entryway into a work of art. Each stained glass design is carefully created using premium materials and expert craftsmanship to deliver vivid colors, elegant textures, and intricate patterns that catch and diffuse sunlight beautifully. The customizable nature of the stained glass allows you to select from a wide range of traditional motifs, modern geometries, or bespoke designs tailored specifically to your vision, ensuring that your door is as unique as your property.

Surrounding this artistic focal point is a robust aluminum frame, engineered for strength, resilience, and longevity. Aluminum’s natural resistance to rust, corrosion, and weathering makes the LIM SG1 perfectly suited for external use, maintaining its pristine look and structural integrity through all seasons with minimal maintenance. The door’s sleek, slimline profile not only enhances its contemporary aesthetic but also maximizes the stained glass surface area, allowing more light to enter while providing excellent thermal performance through advanced insulation and weather sealing.

Security and functionality are paramount in the LIM SG1 design. The door is equipped with high-quality locking mechanisms and hardware, ensuring reliable protection without compromising style. Its smooth operation and precision engineering allow for effortless opening and closing, while weatherproof seals prevent drafts and moisture ingress, contributing to a more comfortable and energy-efficient indoor environment. Additionally, the door’s sound-insulating properties help reduce external noise, creating a peaceful sanctuary inside your home or business.

Customization is a key feature of the LIM SG1. With a variety of frame finishes, stained glass patterns, and hardware options available, you have the freedom to tailor the door to complement your architectural style and personal tastes perfectly. Whether you desire a bold statement piece that commands attention or a subtle, elegant accent that harmonizes with your existing décor, the LIM SG1 offers limitless possibilities.

In summary, the LIM SG1 - Stained Glass External Aluminum Door is more than just an entryway; it is a masterpiece that combines artistic beauty, robust construction, and innovative design. This door not only enhances the visual appeal and value of your property but also provides superior security, energy efficiency, and lasting performance. Choosing the LIM SG1 means investing in a door that welcomes guests with timeless charm and modern sophistication for years to come.
