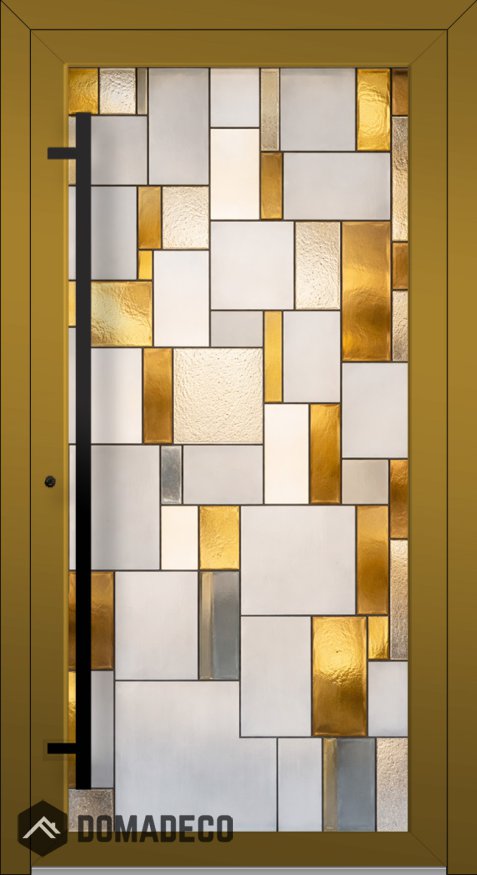

LIM SG2 - Custom Stained Glass external aluminium hinged door

SKU
LIM SG2
Be the first to review this product
AVAILABLE
£4,870.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 900mm to 1295mm
Height from: 2000mm to 2440mm

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

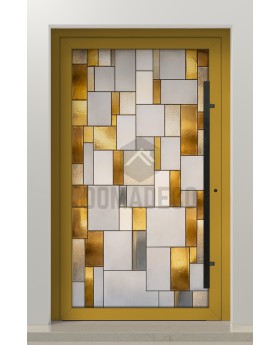

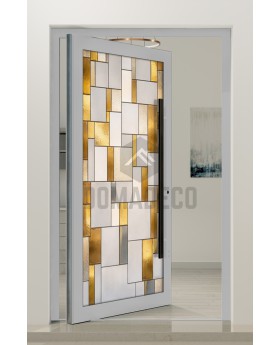

You can order this door model in a bigger size. View Pivot SG2

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 48 mm
Thermal insulation: Ud = 1.2 W/(m2*K)

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£4,870.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM SG2 - Custom Stained Glass external aluminium hinged door
Your Rating

The LIM SG2 - Custom Stained Glass External Aluminum Hinged Door is a stunning fusion of artistic craftsmanship and modern durability, designed to elevate the entrance of any residential or commercial property. This door combines the timeless beauty of handcrafted stained glass with the robust strength of high-quality aluminum framing, creating a unique architectural feature that not only enhances curb appeal but also offers exceptional performance and security.

At the heart of the LIM SG2 door is its custom stained glass panel, meticulously designed and crafted by skilled artisans. Each piece of glass is carefully selected and assembled to create intricate patterns, vibrant colors, and eye-catching designs that reflect your personal style and complement your building’s exterior. Whether you prefer classic motifs, contemporary geometric shapes, or bespoke artistic expressions, this door offers limitless customization possibilities to ensure your entrance is truly one-of-a-kind. Beyond its aesthetic appeal, the stained glass allows natural light to filter through beautifully, casting colorful reflections inside your home or office while maintaining privacy.

Constructed from premium-grade aluminum, the door’s frame is engineered for strength, durability, and weather resistance. Aluminum’s natural corrosion resistance ensures that the LIM SG2 maintains its sleek and polished appearance over time, even when exposed to harsh outdoor conditions such as rain, sun, and wind. The lightweight yet sturdy frame also makes installation easier without compromising on security. The hinged design provides smooth and reliable operation, allowing for effortless opening and closing while accommodating a variety of architectural configurations and sizes.

Security is a key feature of the LIM SG2 door. It is equipped with advanced locking mechanisms and reinforced hardware to protect your property against unauthorized access. The door’s construction also includes energy-efficient seals and thermal insulation, helping to reduce heat transfer, prevent drafts, and improve your building’s overall energy performance. This means you can enjoy a comfortable indoor environment year-round while lowering your energy bills. Additionally, the door’s sound-dampening qualities help minimize external noise, creating a peaceful and inviting interior space.

The versatility of the LIM SG2 extends beyond its stained glass artistry and durable frame. Customers can choose from a wide range of finishes, colors, and hardware options to perfectly match their design vision and functional needs. Whether you are aiming for a bold, dramatic entrance or a subtle, elegant statement, this door can be tailored to fit seamlessly with various architectural styles, from traditional to modern.

In summary, the LIM SG2 - Custom Stained Glass External Aluminum Hinged Door is an exceptional choice for those seeking to combine beauty, strength, and functionality in a single entrance solution. Its exquisite craftsmanship, durable materials, and customizable features make it an investment that will enhance your property’s aesthetic value and security for years to come. Elevate your entryway with the LIM SG2 and enjoy a door that is as unique and enduring as your home or business.
