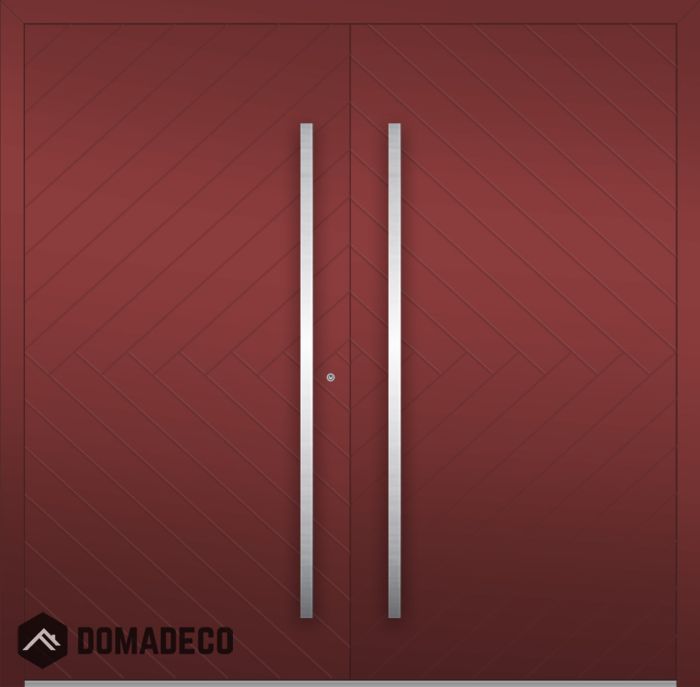

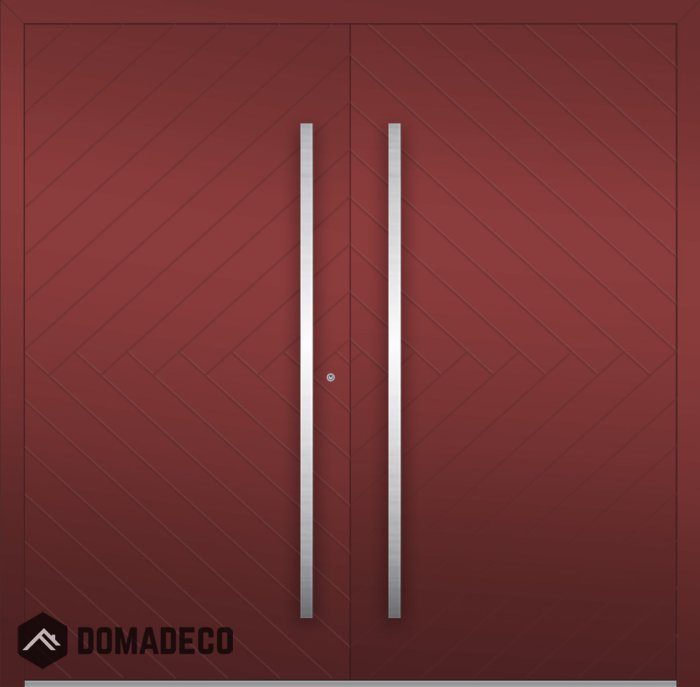

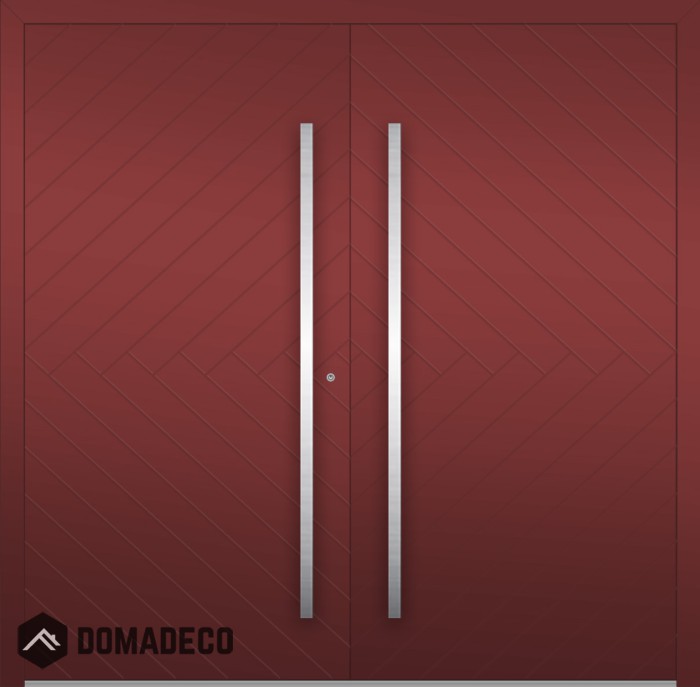

LIM v59 double - prehung double aluminium exterior door with ribs

SKU
LIM v59 double
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£6,660.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 1600mm to 2600mm
Height from: 2000mm to 2860mm

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 70 mm
Thermal insulation: Ud = 0.7 W/(m2*K)
Sound insulation: 30dB

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,660.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM v59 double - prehung double aluminium exterior door with ribs
Your Rating

The LIM V59 Double is a high-quality prehung double aluminum exterior door designed to deliver both exceptional durability and modern aesthetic appeal. Crafted with precision and engineered for performance, this door is an ideal choice for homeowners and commercial property developers seeking a reliable, stylish, and low-maintenance entrance solution. Featuring a distinctive ribbed design, the LIM V59 Double door not only enhances the visual character of any building façade but also provides added structural strength and resilience against daily wear and environmental factors.

Constructed from premium-grade aluminum, the LIM V59 Double door offers outstanding resistance to rust, corrosion, and weather damage, making it perfectly suited for a wide range of climates. Its lightweight yet robust frame ensures easy installation and smooth operation, while the factory-prehung design includes a sturdy frame with pre-installed hinges and weather stripping, simplifying the fitting process and guaranteeing a secure, weather-tight seal. This comprehensive prehung setup means the door is ready for immediate installation, reducing labor time and ensuring long-lasting performance.

One of the standout features of the LIM V59 Double door is its elegant ribbed panel design. These vertical ribs add a dynamic texture and contemporary style that elevates the door’s appearance beyond traditional flat surfaces. Beyond aesthetics, the ribbing also reinforces the door’s structural integrity, enhancing its ability to withstand impacts, resist warping, and maintain its shape over time. This combination of form and function makes the LIM V59 Double door an excellent choice for modern architectural projects that demand both style and strength.

Security is paramount with the LIM V59 Double aluminum door. It is equipped with reinforced hinges and high-quality locking mechanisms designed to provide maximum protection against forced entry and unauthorized access. The solid aluminum construction, combined with the ribbed reinforcement, creates a formidable barrier that enhances the overall safety of the property. This door not only serves as an attractive entry point but also as a reliable safeguard for your home or business.

Functionality is another major benefit of the LIM V59 Double door. Its double-door configuration expands the width of the entryway, allowing for easier movement of large objects such as furniture, equipment, or appliances. This makes it especially practical for commercial spaces or residential settings where accessibility is important. The door’s smooth operation and precision-engineered hardware contribute to effortless opening and closing, while the integrated weather seals improve thermal efficiency, helping to reduce energy costs and maintain comfortable indoor temperatures.

Maintenance requirements for the LIM V59 Double door are minimal compared to traditional wood or steel doors. Thanks to its powder-coated aluminum finish, the door resists fading, chipping, and scratching, maintaining its vibrant appearance for years with just occasional cleaning. This low-maintenance quality makes it an excellent investment for busy households and commercial properties where durability and aesthetics must go hand in hand.

Versatility is another key advantage of the LIM V59 Double prehung door. It complements a variety of architectural styles, from contemporary and minimalist to more classic or industrial designs. Available in multiple colors and finishes, it can be customized to perfectly match the exterior palette of any building, enhancing curb appeal and property value.

In summary, the LIM V59 Double prehung double aluminum exterior door with ribs is a superior solution for anyone seeking a combination of modern style, security, and long-lasting performance. Its robust aluminum construction, enhanced by a sophisticated ribbed design and convenient prehung frame, offers an easy-to-install, weather-resistant, and visually striking entryway. Whether for new construction or renovation projects, the LIM V59 Double door provides a durable and elegant gateway that will enhance the appearance and functionality of any property for many years to come.
