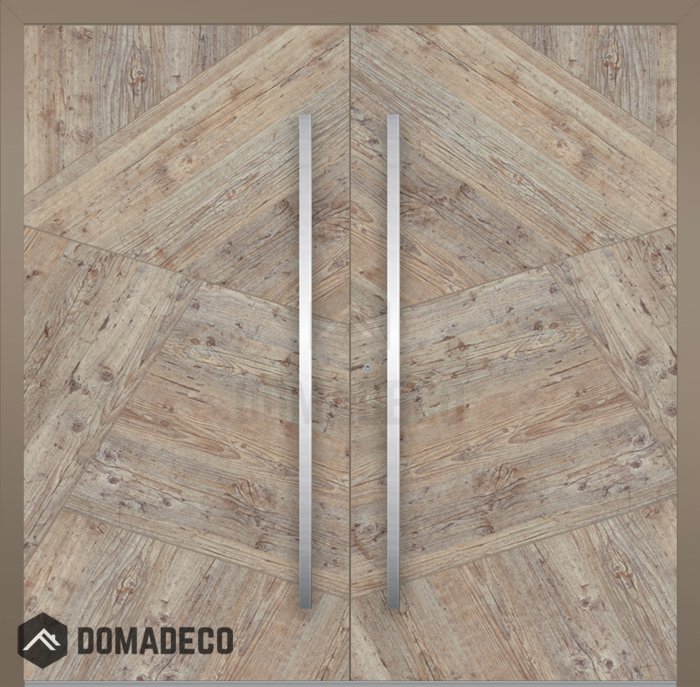

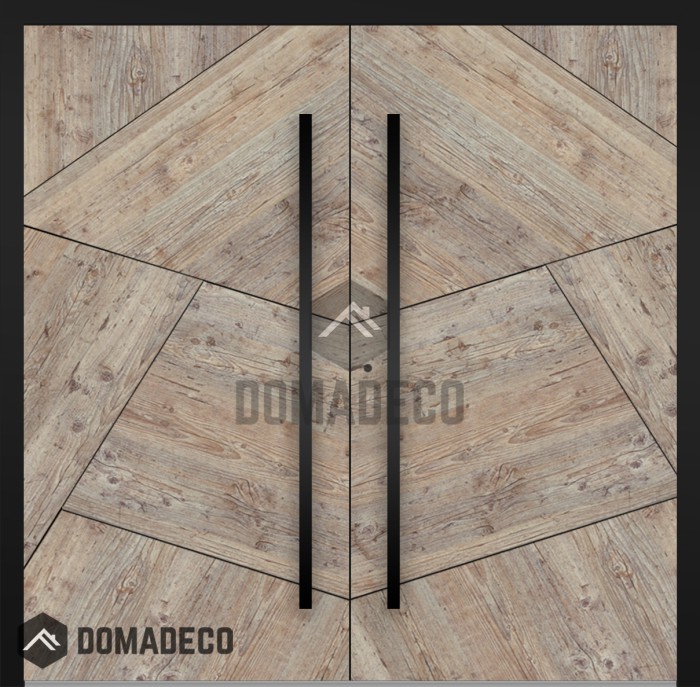

LIM WOODLINE 3 Double - aluminum double door covered Fir Platinum wood imitation

SKU
LIM WOODLINE 3 double
Be the first to review this product
AVAILABLE
£10,080.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 1600mm to 2600mm
Height from: 2000mm to 2440mm

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 70 mm
Thermal insulation: Ud = 0.7 W/(m2*K)
Sound insulation: 30dB

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£10,080.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM WOODLINE 3 Double - aluminum double door covered Fir Platinum wood imitation
Your Rating

The LIM WOODLINE 3 Double aluminum double door covered with Fir Platinum wood imitation is a sophisticated and striking entry solution that perfectly balances aesthetic appeal with exceptional durability and performance. Designed to make a grand statement while delivering outstanding functionality, this door system is ideal for residential and commercial properties seeking the timeless charm of natural wood combined with the modern advantages of advanced aluminum construction. The distinctive Fir Platinum wood imitation finish adds a refined and elegant touch, replicating the unique texture and subtle nuances of fir wood with remarkable realism and depth.

The core structure of the LIM WOODLINE 3 Double door is crafted from high-quality aluminum, renowned for its strength, lightweight properties, and resistance to corrosion and environmental stressors. This aluminum framework ensures that the door remains stable, robust, and secure over time, even when exposed to harsh weather conditions such as rain, sun, wind, and temperature fluctuations. Unlike traditional wooden doors, this aluminum base will not warp, crack, or swell, providing long-lasting reliability with minimal maintenance required.

The standout feature of the LIM WOODLINE 3 Double is its exquisite Fir Platinum wood imitation finish, achieved through cutting-edge lamination technology. This finish faithfully reproduces the natural grain, color variations, and subtle textures characteristic of fir wood, but with enhanced durability and resilience thanks to the protective layers incorporated in the lamination process. The surface is resistant to scratches, fading, stains, and UV radiation, ensuring that the door retains its fresh and vibrant look for years without the need for constant upkeep or refinishing. This makes it a practical yet luxurious choice for those who desire the warmth and authenticity of wood combined with modern performance benefits.

The double door configuration of the LIM WOODLINE 3 not only creates an impressive and welcoming entrance but also offers increased accessibility and versatility. Perfect for wider openings, this design allows for easy movement of large objects, enhanced natural light flow (when combined with optional glazing), and a more spacious feel in entryways. The door is engineered with precision hardware, including secure locking systems and smooth-operating hinges, to provide maximum security, ease of use, and durability.

The LIM WOODLINE 3 Double door is also designed with energy efficiency in mind. Advanced weatherstripping and insulating materials are integrated into its construction to prevent drafts, improve thermal performance, and reduce energy consumption. This helps maintain a comfortable indoor environment throughout the year, lowering heating and cooling costs while contributing to a greener, more sustainable building.

The door’s soundproofing qualities further enhance indoor comfort by minimizing external noise, making it suitable for homes and commercial spaces located in busy or noisy environments. Additionally, the door’s robust construction ensures excellent security, providing peace of mind for property owners without compromising on style.

The LIM WOODLINE 3 Double door can be customized to suit individual preferences and architectural requirements. Customers have the option to choose from a variety of hardware finishes, handle designs, and glazing inserts, allowing them to create a personalized entrance that complements their building’s design language perfectly. Whether your style is contemporary, traditional, or somewhere in between, this door offers the flexibility to meet your vision.

In summary, the LIM WOODLINE 3 Double aluminum double door covered with Fir Platinum wood imitation is an exceptional entry solution that marries the natural beauty of fir wood with the strength and longevity of aluminum. Its elegant finish, durable construction, energy-efficient features, and customizable options make it a superior choice for those seeking a grand, secure, and low-maintenance double door that enhances the aesthetic and functional value of any property. With the LIM WOODLINE 3 Double, you can enjoy the best of both worlds—timeless wood-inspired elegance combined with cutting-edge modern performance.
