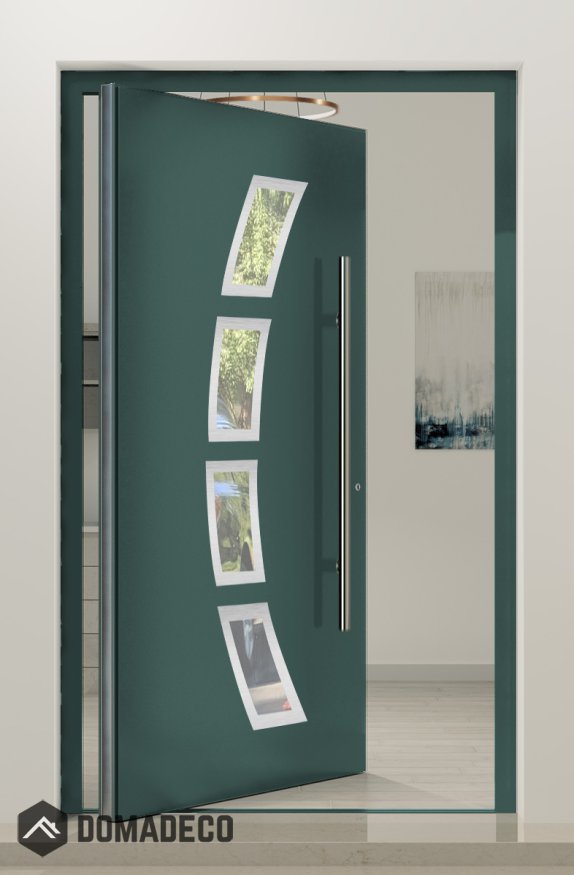

PIVOT 21A - aluminium Modern exterior pivot door

SKU
PIVOT 21A
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£6,520.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

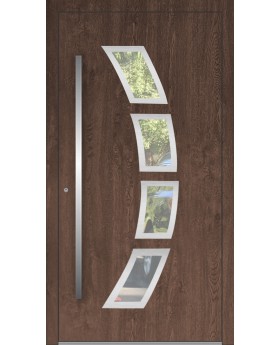

You can order this door model in a smaller size. View LIM 21A

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,520.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT 21A - aluminium Modern exterior pivot door
Your Rating

The PIVOT 21A aluminum modern exterior pivot door is an exceptional entryway solution designed to combine cutting-edge architectural style with outstanding performance and durability. Perfectly suited for contemporary residential and commercial applications, this door redefines the concept of an entrance by offering a sleek, minimalist design paired with a sophisticated pivot hinge mechanism that creates a dynamic and elegant opening experience.

Crafted from premium-grade aluminum, the PIVOT 21A door boasts remarkable strength and resilience while maintaining a lightweight structure that facilitates smooth operation. Aluminum’s natural resistance to corrosion, rust, and weather elements ensures long-lasting beauty and structural integrity, even in demanding outdoor environments. The door’s clean lines and refined frame profile reflect modern design principles, emphasizing simplicity, functionality, and timeless elegance that effortlessly complements a wide range of architectural styles.

At the heart of the PIVOT 21A’s innovative design is its pivot hinge system, which allows the door to rotate around a central vertical axis rather than swinging on traditional side hinges. This unique mechanism not only makes a bold visual statement but also enables larger and more flexible door openings, creating an impressive and inviting entrance. The pivot design maximizes spatial efficiency and provides a smooth, effortless swing action, allowing for creative architectural configurations and enhancing user convenience.

The door panel itself offers extensive customization possibilities, accommodating a variety of materials and finishes to tailor the door to specific aesthetic and functional needs. Options include expansive glass inserts—such as tempered, laminated, or double-glazed panels—that enhance natural light penetration while maintaining thermal performance and security. Glass treatments like tinting, frosting, or decorative patterns can be applied to balance privacy with openness, creating a personalized look that complements the overall design scheme. Additionally, solid aluminum or wood veneer panels can be incorporated to achieve a unique texture and visual warmth.

Thermal efficiency is a key feature of the PIVOT 21A, thanks to advanced thermal break technology integrated within the aluminum frame. This innovation significantly reduces heat transfer, preventing cold spots and condensation buildup that can compromise indoor comfort and increase energy consumption. Combined with high-quality weather seals and precision-engineered fitting, the door provides excellent protection against drafts, moisture infiltration, and external noise, enhancing the overall living or working environment.

Security is another critical aspect of the PIVOT 21A’s design. The robust aluminum construction, reinforced pivot hardware, and multi-point locking systems work together to create a secure barrier against unauthorized entry without detracting from the door’s sleek appearance. This combination of strength and style ensures peace of mind while maintaining the door’s modern aesthetic appeal.

The PIVOT 21A aluminum modern exterior pivot door also offers extensive customization options in terms of finishes. A wide array of powder-coated and anodized colors and textures allow the door to integrate seamlessly with any architectural palette, whether bold and dramatic or subtle and understated. Matching or contrasting hardware choices further enhance the door’s individual character and design coherence.

Installation of the PIVOT 21A is designed to be straightforward and precise, ensuring optimal fit and smooth operation. The durable materials and finishes require minimal maintenance, resisting fading, chipping, and staining, which helps preserve the door’s striking appearance and functionality over many years.

In summary, the PIVOT 21A aluminum modern exterior pivot door represents a perfect fusion of innovative engineering, superior materials, and contemporary design. Its distinctive pivot mechanism, durable aluminum frame, and versatile customization options make it an ideal choice for those seeking a bold, elegant, and highly functional entrance that transforms any architectural setting into a statement of modern sophistication and style.
