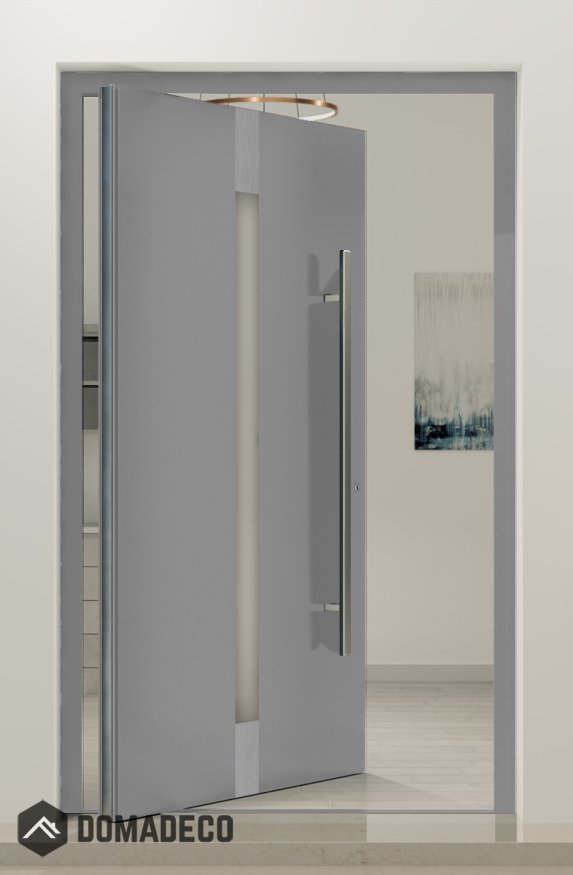

PIVOT AP11 - custom aluminum pivot entry door

SKU
PIVOT AP11
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£6,520.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

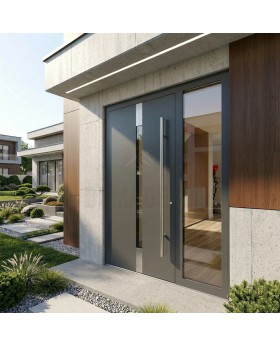

You can order this door model in a smaller size. View LIM AP11

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,520.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT AP11 - custom aluminum pivot entry door
Your Rating

The PIVOT AP11 is a custom aluminum pivot entry door that exemplifies the perfect blend of modern design, superior functionality, and exceptional craftsmanship. Engineered to make a bold architectural statement, this door is ideal for homeowners, architects, and designers seeking a distinctive entrance solution that combines aesthetic appeal with robust performance. Crafted from premium-grade aluminum, the PIVOT AP11 offers outstanding durability, resistance to weather elements, and low maintenance requirements, making it well-suited for both residential and commercial applications where longevity and style are paramount.

At the core of the PIVOT AP11’s unique character is its innovative pivot door mechanism, which allows the door to swing open on a central or offset pivot hinge rather than conventional side hinges. This pivot system not only creates a striking visual impact but also enables the design of larger, heavier door panels that traditional hinged doors cannot accommodate with ease. The smooth, effortless rotation on the pivot hinge provides an inviting and dramatic entry experience while maximizing usable space and enhancing architectural flow. This feature allows for greater creative freedom in door size and placement, making the PIVOT AP11 a versatile choice for a variety of building types and styles.

Customization is a hallmark of the PIVOT AP11, allowing clients to tailor every aspect of the door to their specific design preferences and functional needs. The aluminum frame can be finished in a wide array of colors and textures through advanced powder-coating or anodizing processes, ensuring both aesthetic versatility and long-lasting protection against corrosion and fading. Whether you prefer a sleek matte finish, a bold vibrant hue, or a sophisticated metallic sheen, the PIVOT AP11 can be personalized to seamlessly integrate with any architectural theme, from ultra-modern minimalist spaces to more traditional or industrial environments.

Beyond its striking appearance, the PIVOT AP11 prioritizes security and energy efficiency. The strong aluminum construction provides a formidable barrier against intrusion, while the door can be fitted with advanced locking mechanisms to enhance safety without compromising design elegance. Additionally, the door system incorporates high-quality seals, weatherstripping, and thermal breaks to minimize air infiltration and thermal transfer, contributing to improved insulation and energy savings. This makes the PIVOT AP11 not only a visually captivating feature but also a practical investment in comfort, security, and sustainability.

The minimalist design of the PIVOT AP11 with clean lines and uncluttered surfaces complements contemporary architectural trends that emphasize simplicity and elegance. The pivot operation eliminates the conventional door swing radius, enabling innovative spatial configurations and smoother traffic flow in entryways. This makes the door an excellent choice for grand entrances, art galleries, luxury residences, commercial buildings, and any space that demands both functional excellence and architectural drama.

Professional installation is essential to ensure the precise alignment and smooth operation of the pivot mechanism, guaranteeing the door’s longevity and performance. The PIVOT AP11 also offers a range of customizable hardware options, including modern handles, integrated locks, and flush pulls, which enhance both usability and aesthetic cohesion. Every detail is carefully considered to provide a seamless integration of form and function.

In summary, the PIVOT AP11 custom aluminum pivot entry door stands as a pinnacle of contemporary entryway design, combining innovative pivot technology with the strength and versatility of aluminum construction. It offers a unique opportunity to create a grand and memorable entrance that reflects personal style while delivering superior durability, security, and energy efficiency. For those seeking a statement piece that elevates the architectural character of their property, the PIVOT AP11 is a distinguished choice that embodies bespoke craftsmanship and design excellence.
