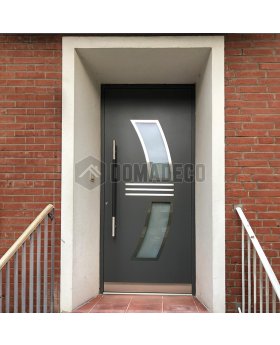

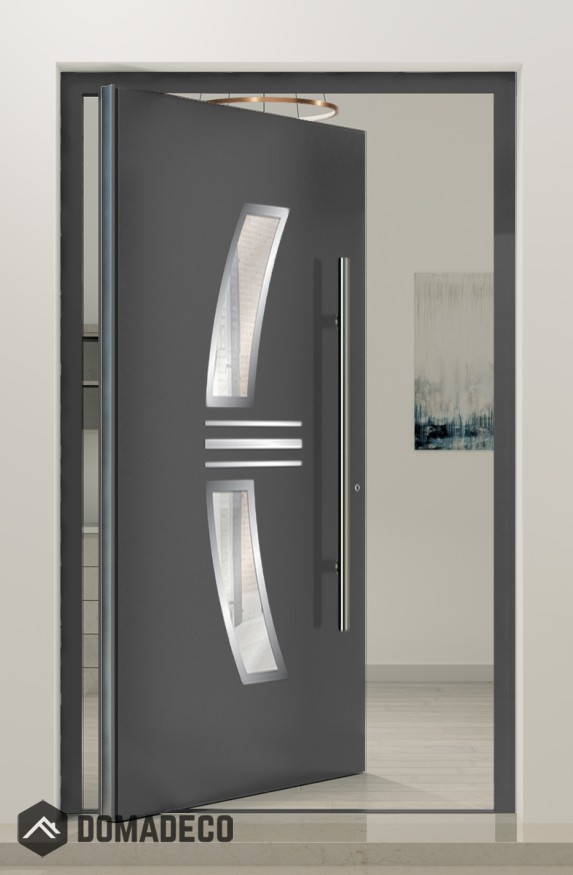

PIVOT AP15 - aluminium unique pivot front door

SKU
PIVOT AP15
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£6,520.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM AP15

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,520.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT AP15 - aluminium unique pivot front door
Your Rating

The PIVOT AP15 is an exceptional aluminum pivot front door that combines innovative engineering with modern aesthetics to create a truly unique entrance solution. Designed for both residential and commercial properties, this door stands out as a bold architectural feature that enhances curb appeal while delivering superior functionality and durability. Crafted from high-quality aluminum, the PIVOT AP15 offers a sleek, contemporary look with a robust structure built to withstand the test of time.

At the heart of the PIVOT AP15’s design is its distinctive pivot hinge system. Unlike traditional doors that swing on side hinges, this door rotates smoothly around a central vertical axis, creating a dramatic and elegant entry experience. This pivot mechanism allows for larger and heavier door panels, enabling expansive openings that invite natural light and create a seamless connection between indoor and outdoor spaces. The precision-engineered pivot hardware ensures effortless operation, perfect balance, and long-lasting reliability with minimal maintenance.

Constructed from premium aluminum, the PIVOT AP15 door provides exceptional strength and resistance to environmental elements. Aluminum’s corrosion-resistant properties make this door ideal for a variety of climates, protecting it from rust, warping, and fading. The door’s frame and panel are reinforced to enhance security and stability, making it a trustworthy choice for high-traffic areas without compromising on style. Its lightweight nature also contributes to ease of installation and smooth functionality.

Customization is one of the key features of the PIVOT AP15. The aluminum surface can be finished with a wide range of coatings and textures, including powder-coated and anodized finishes. An extensive palette of colors and finishes allows architects and homeowners to tailor the door’s appearance to perfectly complement any design theme, whether it’s minimalist, industrial, or ultra-modern. The clean lines and minimalist hardware emphasize the door’s modern appeal, making it a striking focal point for any building façade.

Beyond its aesthetic appeal, the PIVOT AP15 is thoughtfully engineered for energy efficiency and security. Integrated thermal breaks within the frame reduce heat transfer, improving insulation and helping to maintain comfortable indoor temperatures throughout the year. The door is equipped with high-performance weather seals that prevent drafts, water ingress, and noise pollution, enhancing the comfort of the interior environment. For added security, the door can be fitted with state-of-the-art locking mechanisms and reinforced hardware, providing peace of mind without sacrificing style.

For those who wish to maximize natural light without compromising privacy or safety, the PIVOT AP15 can be customized with impact-resistant or laminated glass panels. These options offer transparency and elegance while providing durability and protection against breakage. The inclusion of glass panels also contributes to a brighter, more inviting entrance that enhances the overall ambiance of the space.

Professional installation is essential to ensure the PIVOT AP15 performs at its best. Expert installers calibrate the pivot system precisely and align the door perfectly, guaranteeing smooth operation and optimal security. Proper installation also prolongs the lifespan of the door, preserving its appearance and functionality for years to come.

In summary, the PIVOT AP15 aluminum unique pivot front door is a masterful combination of modern design, superior craftsmanship, and innovative technology. Its distinctive pivot operation, durable aluminum construction, and customizable finishes make it a standout choice for anyone looking to make a bold architectural statement. Offering beauty, strength, and practicality in one elegant package, the PIVOT AP15 transforms any entrance into a welcoming and impressive gateway.
