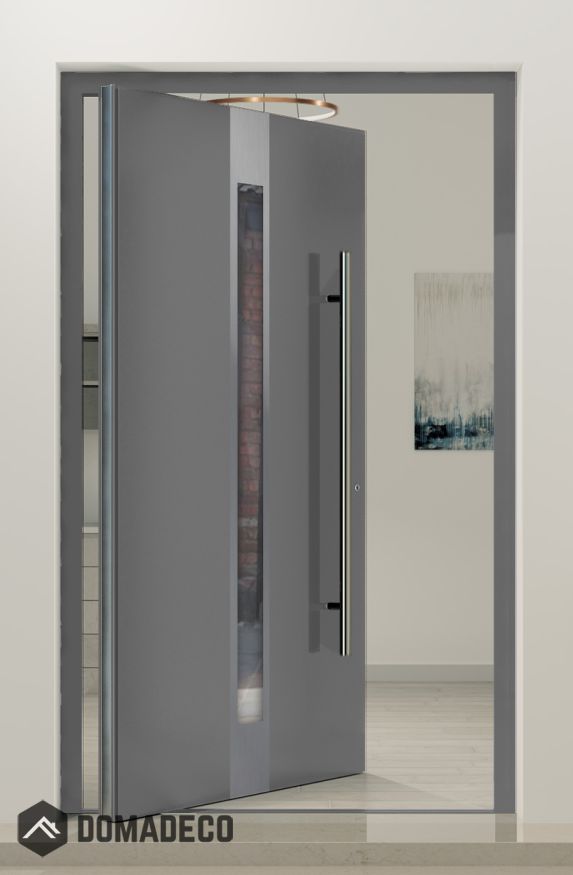

PIVOT C1 - modern aluminium pivot door for home

SKU
PIVOT C1
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£6,520.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM C1

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,520.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C1 - modern aluminium pivot door for home
Your Rating

The PIVOT C1 is a cutting-edge modern aluminum pivot door designed specifically for residential applications, offering a seamless fusion of contemporary aesthetics, superior durability, and innovative functionality. This door redefines the concept of home entrances by combining sleek, minimalist design with advanced engineering, making it the perfect choice for homeowners and architects seeking to elevate the style and performance of their living spaces. Whether used as a main entryway or as a striking interior partition, the PIVOT C1 delivers an impressive architectural statement that enhances both the curb appeal and the overall ambiance of any modern home.

At the core of the PIVOT C1’s design is its sophisticated pivot mechanism, which allows the door to rotate smoothly around a fixed vertical axis rather than swinging on traditional side hinges. This pivot action not only creates a visually captivating opening experience but also supports larger and heavier door panels that conventional hinge systems cannot easily accommodate. The precise balance and engineering of the pivot hardware ensure effortless operation, providing fluid motion and stable support that elevate everyday usability and add an element of refined sophistication to the home’s entrance.

The door’s frame and panel are expertly crafted from premium-grade aluminum, selected for its exceptional strength-to-weight ratio, corrosion resistance, and longevity. Aluminum’s inherent durability makes the PIVOT C1 highly resistant to harsh weather conditions, UV exposure, and temperature fluctuations, ensuring the door maintains its pristine condition and performance for years to come. The slim aluminum profiles maximize the door’s glazing area, allowing for expansive glass surfaces that invite natural light to flood interior spaces while offering unobstructed views of the outdoors. This design not only brightens the home but also fosters a strong connection between indoor and outdoor environments, enhancing the sense of openness and tranquility.

Customization is a defining feature of the PIVOT C1, empowering homeowners and designers to tailor the door to their specific tastes and functional needs. Available in a wide spectrum of contemporary finishes and colors, this door can seamlessly integrate with various architectural styles, from minimalist modern to industrial chic. In addition, a range of glazing options—including energy-efficient double or triple-pane glass with low-emissivity coatings—can be selected to optimize thermal insulation, reduce energy consumption, and improve acoustic performance. These features contribute to a more sustainable living environment while enhancing comfort and privacy.

Security and reliability are paramount in the PIVOT C1’s design philosophy. The door is equipped with robust pivot hardware engineered to provide long-lasting, smooth operation and to securely support heavy door panels. A multi-point locking system ensures enhanced protection against forced entry, while optional laminated or tempered safety glass options add an extra layer of security without compromising the door’s sleek aesthetic. This combination of strength and style gives homeowners peace of mind while maintaining a refined architectural look.

Easy installation and low maintenance further enhance the appeal of the PIVOT C1. The door’s components are designed for precise alignment and effortless adjustment, ensuring professional installation achieves optimal performance and longevity. Thanks to the durable aluminum construction and high-quality finishes, the door requires minimal upkeep, preserving its elegant appearance and smooth operation with little effort.

In conclusion, the PIVOT C1 modern aluminum pivot door is an outstanding entrance solution that perfectly balances form and function for today’s contemporary homes. Its innovative pivot mechanism, premium aluminum construction, customizable design options, and superior energy efficiency make it an ideal choice for homeowners who value style, durability, and practicality. By choosing the PIVOT C1, you invest in a door that not only elevates the architectural character of your home but also enhances everyday living through exceptional performance and timeless design.
