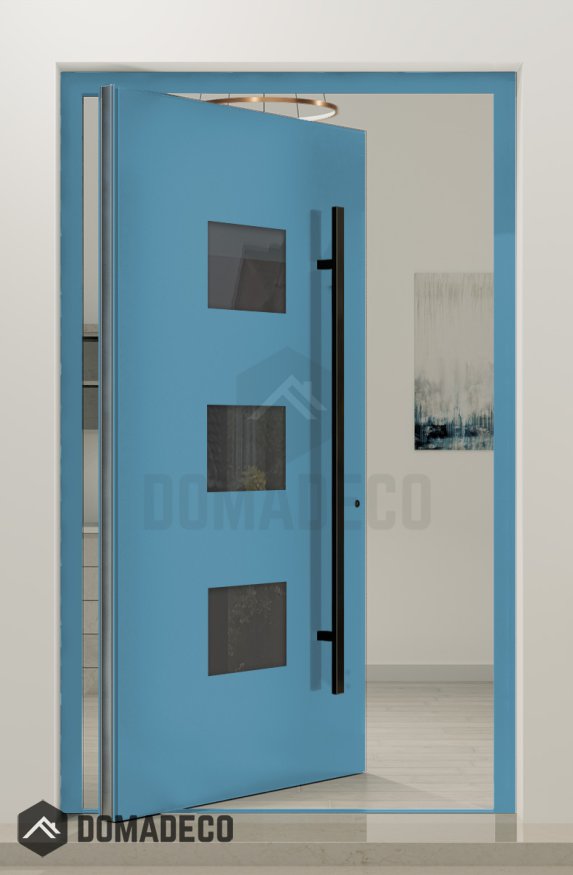

PIVOT C19 - luxury modern aluminium pivot front door

SKU
PIVOT C19
Be the first to review this product
AVAILABLE
£6,520.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM C19



Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,520.00

The price includes VAT & shipping

Wish List
Email

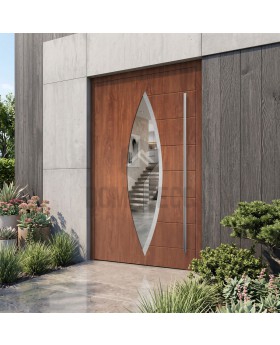

We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C19 - luxury modern aluminium pivot front door
Your Rating

The PIVOT C19 is a luxury modern aluminum pivot front door that redefines contemporary entrance design with its impeccable blend of style, strength, and innovative engineering. Crafted for discerning homeowners, architects, and designers, this door serves as a stunning focal point that enhances the curb appeal and architectural integrity of any modern residence or upscale commercial space.

At the heart of the PIVOT C19 is its sophisticated pivot mechanism, which allows the door to rotate smoothly around a central vertical axis. This unique operation not only creates a striking visual impact but also provides practical benefits such as maximizing the opening width and enabling versatile installation options. Unlike traditional hinged doors, the pivot system offers enhanced spatial flexibility, making it an ideal solution for grand entrances and contemporary floor plans where both aesthetics and functionality are paramount.

Built from high-quality aluminum, the PIVOT C19 boasts exceptional durability and resilience against the elements. The aluminum frame is lightweight yet incredibly strong, providing superior structural integrity that withstands daily use and harsh weather conditions. The door’s surface is finished with a premium powder coating available in a wide array of custom colors and textures, ensuring long-lasting beauty and resistance to corrosion, fading, and wear. This makes the PIVOT C19 a reliable and low-maintenance choice for luxury properties.

Customization is a key feature of the PIVOT C19, allowing it to seamlessly integrate with diverse architectural styles. Whether you prefer a sleek, minimalist metal finish, a warm wood veneer, or an innovative composite panel, this door can be tailored to reflect your unique design vision. Additional options like integrated sidelights or transom windows can be incorporated to enhance natural light and further elevate the entrance’s aesthetic appeal.

Performance and ease of use are enhanced by precision-engineered pivot hardware that ensures smooth, quiet operation. This robust mechanism supports large and heavy door panels effortlessly, delivering a flawless opening experience day after day. The door can be configured to swing inward or outward, offering flexibility to suit various site conditions and design requirements.

Security is paramount in the PIVOT C19 design. Equipped with a state-of-the-art multi-point locking system, the door provides enhanced protection against unauthorized entry without compromising its sleek and modern appearance. Reinforced framing and high-quality components contribute to the door’s overall stability and safety, giving homeowners peace of mind alongside exceptional style.

Energy efficiency is thoughtfully integrated into the PIVOT C19 through thermally broken aluminum frames and optional insulated panels. These features reduce heat transfer, improve insulation, and help maintain comfortable indoor temperatures, making this door an environmentally responsible choice that supports sustainable building practices.

In summary, the PIVOT C19 luxury modern aluminum pivot front door is a masterpiece of design and engineering. It combines striking aesthetics, superior materials, advanced functionality, and customizable options to create an entrance that is both beautiful and highly practical. Choosing the PIVOT C19 means investing in a front door that will transform your property’s façade, deliver effortless operation, and provide lasting value for years to come.
