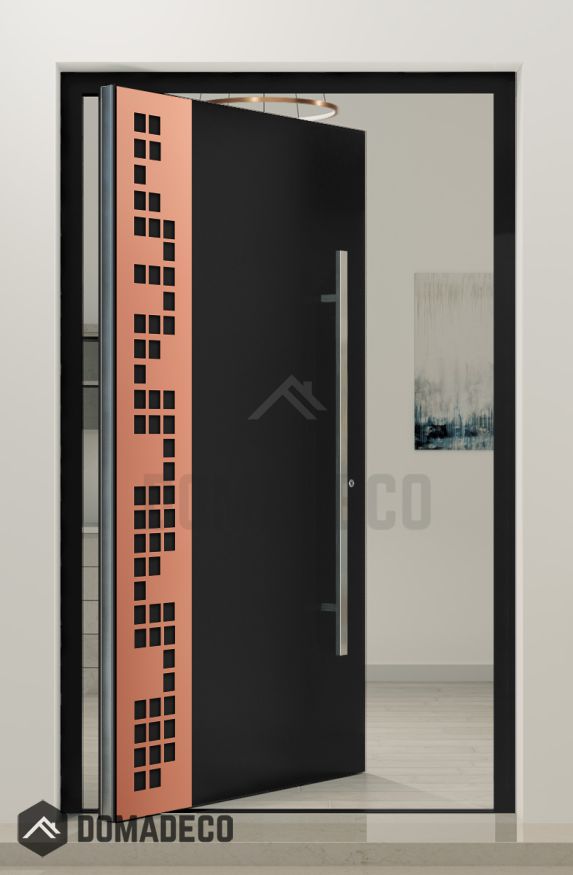

PIVOT C27 - aluminium pivot door covered copper sheet with cut-out squares

SKU
PIVOT C27
Be the first to review this product
AVAILABLE
£6,430.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM C27

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,430.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C27 - aluminium pivot door covered copper sheet with cut-out squares
Your Rating

The PIVOT C27 is an exquisite aluminum pivot door that redefines modern elegance through its innovative design and luxurious materials. At its core, this door features a robust yet lightweight aluminum structure, ensuring exceptional durability and longevity. What truly sets the PIVOT C27 apart is its stunning outer layer—a meticulously crafted copper sheet that envelops the aluminum frame, bringing warmth, richness, and a unique tactile quality to the door’s surface. The copper finish is enhanced by a series of precisely cut-out squares, creating a striking geometric pattern that adds depth, visual intrigue, and a dynamic interplay of light and shadow.

Engineered with a sophisticated pivot mechanism, the PIVOT C27 offers a seamless and smooth operation that allows the door to rotate effortlessly around a central vertical axis. This pivot design not only elevates the door’s aesthetic appeal but also maximizes functional space by eliminating the traditional swing radius of hinged doors. Whether installed as a grand entrance or as a distinctive interior partition, the pivot system provides a contemporary edge, making the PIVOT C27 a perfect fit for both modern and transitional architectural styles.

The copper cladding is more than just an ornamental feature; it delivers remarkable longevity and resilience. Copper naturally develops a beautiful patina over time, which enhances its character and adds a timeless element to the door’s appearance. The cut-out squares are carefully designed to balance transparency and privacy, allowing subtle glimpses of light and shadow while maintaining a sense of enclosure and security. This intricate detailing elevates the door into a piece of architectural art that commands attention and admiration.

Beyond its captivating look, the PIVOT C27 is built for superior performance. The aluminum substrate provides excellent resistance to corrosion, weathering, and everyday wear, making this door suitable for a wide range of environments and climates. High-quality pivot hardware and precision engineering ensure smooth, stable operation and long-lasting reliability. Additionally, the door incorporates advanced sealing systems to protect against drafts, moisture, and noise infiltration, contributing to energy efficiency and enhanced comfort within your space.

Security is paramount in the design of the PIVOT C27. Its solid aluminum core and reinforced frame accommodate sophisticated locking mechanisms, offering robust protection without compromising on style. The fusion of strength and elegance makes this door a practical yet breathtaking choice for those seeking to combine safety with artistic expression.

Installation of the PIVOT C27 is versatile and can be tailored to various architectural projects, including residential homes, luxury apartments, boutique commercial spaces, and cutting-edge office environments. Its ability to serve as both a functional doorway and a sculptural centerpiece makes it a compelling option for designers and homeowners who value innovation, craftsmanship, and distinctive aesthetics.

In summary, the PIVOT C27 aluminum pivot door covered with a copper sheet and adorned with cut-out squares is a masterpiece of design and engineering. It offers a harmonious blend of durability, functionality, and artistic beauty, transforming any entrance into a statement of sophistication and modern luxury. Choose the PIVOT C27 to elevate your space with a door that is as durable and secure as it is visually captivating and unique.
