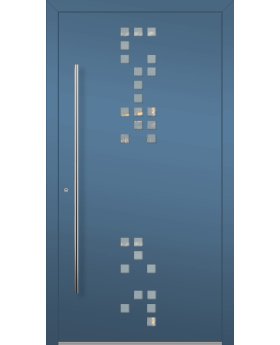

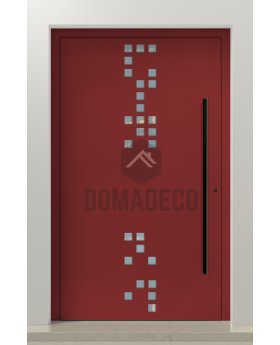

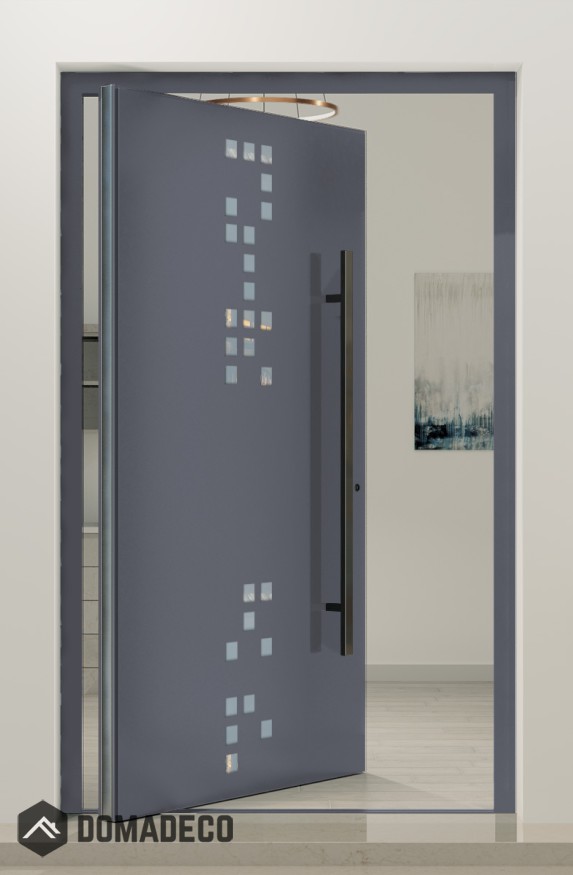

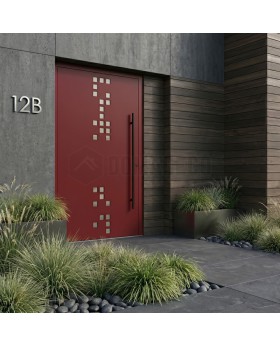

PIVOT Digital-A - high quality aluminium pivot door

SKU
PIVOT digital-a
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£6,520.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

You can order this door model in a bigger size. View LIM Digital-A

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,520.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT Digital-A - high quality aluminium pivot door
Your Rating

The PIVOT Digital-A is a high-quality aluminum pivot door that seamlessly combines modern design, advanced technology, and exceptional durability to create a truly remarkable entrance solution. Engineered to impress, this door is ideal for both residential and commercial properties seeking a distinctive and contemporary focal point. Its innovative pivot mechanism, paired with premium aluminum construction, offers a unique blend of style and functionality that elevates any architectural setting.

Crafted from top-grade aluminum, the PIVOT Digital-A door delivers superior strength and resilience while maintaining a lightweight and sleek profile. Aluminum’s natural resistance to corrosion, weathering, and wear ensures long-lasting performance and minimal maintenance, making it suitable for diverse climates and demanding environments. The door’s minimalist design emphasizes clean lines and expansive glass panels, allowing abundant natural light to flood interior spaces while maintaining privacy and security. This combination not only enhances curb appeal but also creates a welcoming and open atmosphere.

One of the standout features of the PIVOT Digital-A is its state-of-the-art pivot hinge system, which allows the door to rotate smoothly around a fixed vertical axis rather than swinging on traditional side hinges. This innovative mechanism provides a dramatic and effortless opening experience, enabling the use of larger, heavier door panels that make a bold architectural statement. The pivot design enhances accessibility and functionality, while precision engineering and high-quality hardware ensure smooth operation and long-term reliability.

Incorporating advanced digital technology, the PIVOT Digital-A door elevates security and convenience to new heights. It supports smart locking systems, keyless entry, biometric authentication, and remote access control, allowing property owners to manage and monitor access seamlessly through smartphone applications. This integration of cutting-edge technology not only strengthens security but also adds a modern, futuristic dimension to the door’s overall appeal, making it a perfect fit for smart homes and innovative commercial spaces.

Energy efficiency is another significant advantage of the PIVOT Digital-A door. Featuring thermal break technology and premium weather seals, it minimizes heat transfer and air infiltration, helping to maintain comfortable indoor temperatures and reduce energy consumption. This eco-friendly design supports sustainable building practices while lowering utility costs, making the door an environmentally responsible choice without compromising on style or performance.

Customization options for the PIVOT Digital-A are extensive, enabling clients to tailor the door to their specific aesthetic and functional requirements. The door is available in a wide array of finishes, colors, and textures, as well as multiple glass options including clear, frosted, tinted, and decorative varieties. Additional design elements such as sidelights and transoms can be incorporated to create a complete and cohesive entrance ensemble, perfectly complementing any architectural style.

Installation of the PIVOT Digital-A door is designed for flexibility and ease, suitable for new builds as well as renovations. Its modular construction allows for smooth integration into various building configurations, ensuring a hassle-free setup process and reliable performance from day one.

In summary, the PIVOT Digital-A high-quality aluminum pivot door represents the pinnacle of modern entrance solutions. By combining elegant design, innovative pivot technology, advanced digital security features, and superior energy efficiency, it offers an exceptional blend of form and function. Choosing the PIVOT Digital-A door means investing in a durable, stylish, and smart entryway that enhances property value while providing an impressive architectural centerpiece that truly transforms any space.
