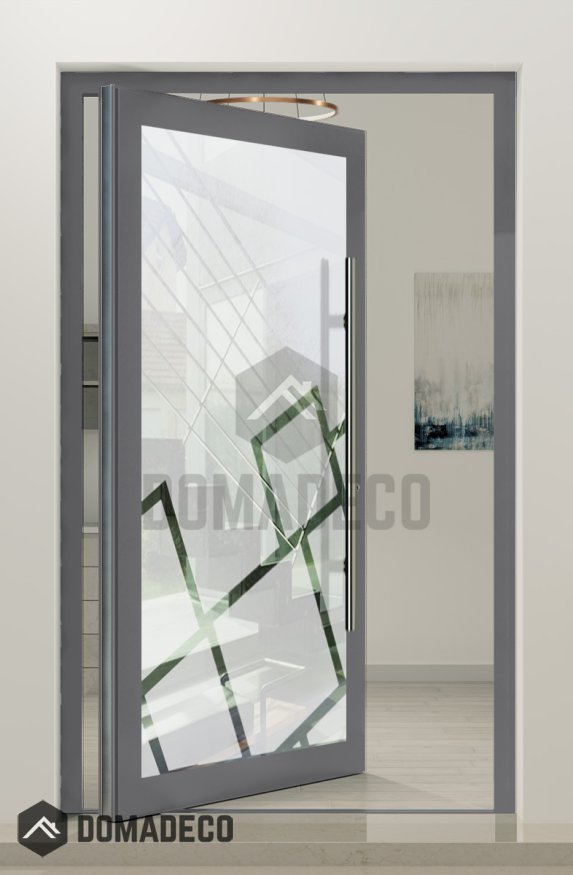

PIVOT Glass S - frosted aluminium pivot door with transparent motif

SKU
PIVOT Glass S
Rating:
100 % of 100
AVAILABLE
£6,320.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2600mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

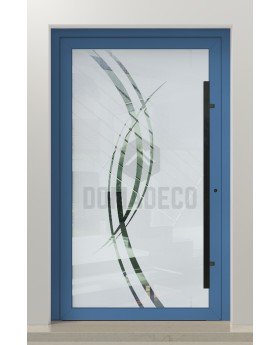

You can order this door model in a smaller size. View LIM Glass S

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.

Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,320.00

The price includes VAT & shipping

We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT Glass S - frosted aluminium pivot door with transparent motif
Your Rating

The PIVOT Glass S is an exquisite frosted aluminum pivot door that masterfully combines modern design with functional elegance, making it an ideal choice for both residential and commercial spaces seeking a distinctive architectural statement. This door stands out through its innovative use of frosted glass featuring a transparent motif, which not only enhances privacy but also introduces an artistic element that elevates any interior or exterior environment.

Crafted from high-quality aluminum, the frame of the PIVOT Glass S is both lightweight and remarkably durable, offering excellent resistance to corrosion and wear. This ensures the door maintains its pristine appearance and reliable performance over time, even when exposed to varying environmental conditions. The sleek aluminum profile is finished with a sophisticated coating that complements the frosted glass panel, creating a seamless blend of materials that exude contemporary sophistication.

The frosted glass panel is the heart of the PIVOT Glass S design, providing a soft, diffused light effect that brightens spaces while maintaining privacy. Unlike traditional opaque doors, the frosted surface is enhanced with a transparent motif—an artistic pattern or design intentionally integrated into the glass. This motif adds depth and visual interest, allowing light to pass through selectively and casting subtle shadows that enrich the ambiance of any room. The transparent design can be customized to suit individual tastes or branding needs, making the door a unique focal point tailored to the specific character of the space.

Functionality is key in the PIVOT Glass S, which operates on a smooth pivot hinge system. Unlike conventional hinged doors, the pivot mechanism allows the door to rotate effortlessly around a central vertical axis. This enables larger and heavier door panels to be installed without compromising ease of use, and it also creates a dramatic entrance effect that enhances spatial flow. The pivot design maximizes usable space by requiring less clearance than traditional doors, making it ideal for contemporary interiors where open, airy layouts are desired.

Customization options for the PIVOT Glass S are extensive, allowing designers and architects to tailor the door to their exact specifications. Beyond the transparent motif, choices include different frosted glass textures, frame finishes, and hardware styles to harmonize with any décor. Additionally, the glass can be treated with advanced coatings that improve thermal insulation and sound reduction, contributing to energy efficiency and comfort within the building.

Security and durability are paramount in the PIVOT Glass S. The frosted glass panel is made from toughened safety glass, engineered to withstand impact and resist breakage, ensuring occupant safety. The aluminum frame and pivot hardware are precision-engineered to deliver stable, reliable operation over years of use. The door can also be equipped with advanced locking systems, including multi-point locks, to provide enhanced security without detracting from its elegant appearance.

Installation is designed to be straightforward, supported by adjustable pivot hardware that allows for precise alignment and smooth operation. This attention to detail ensures that the door functions flawlessly from the moment it is fitted, minimizing maintenance and extending its lifespan.

In summary, the PIVOT Glass S frosted aluminum pivot door with a transparent motif is a luxurious and versatile architectural element that harmonizes privacy, artistry, and cutting-edge engineering. Its combination of durable materials, customizable design, and innovative pivot functionality makes it an exceptional choice for those looking to make a bold yet refined statement in their living or working spaces. With the PIVOT Glass S, every entrance becomes an opportunity to impress with style, security, and sophistication.
