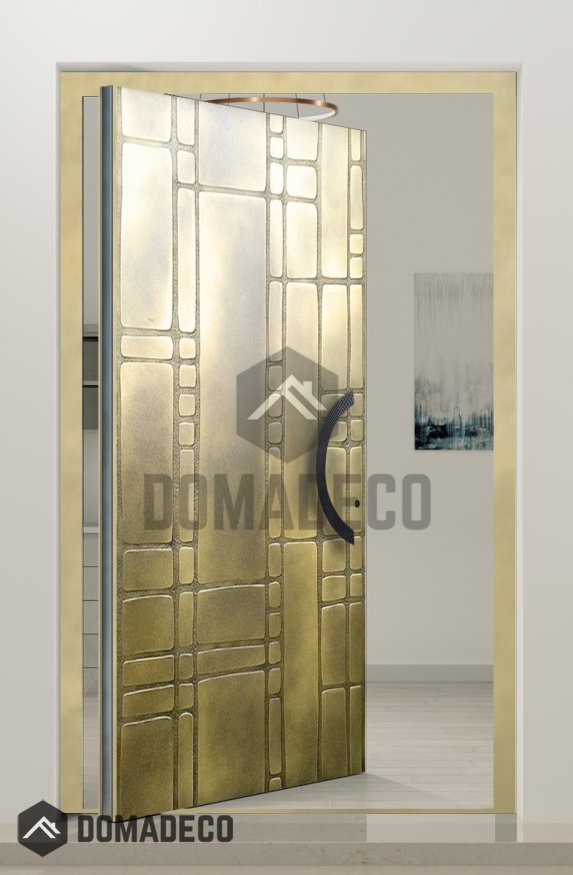

PIVOT M18 - aluminium pivot door with yellow brass texture of milled metal
The price includes VAT & shipping
Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks
Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2600mm
You can order this door model in a smaller size. View LIM M19
Technical specifications
Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 1.1 W/K*m2
The door set includes:
- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.
The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.
The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check
We provide the installation of our front door in England. Installation costs extra and depends on the type of door.
