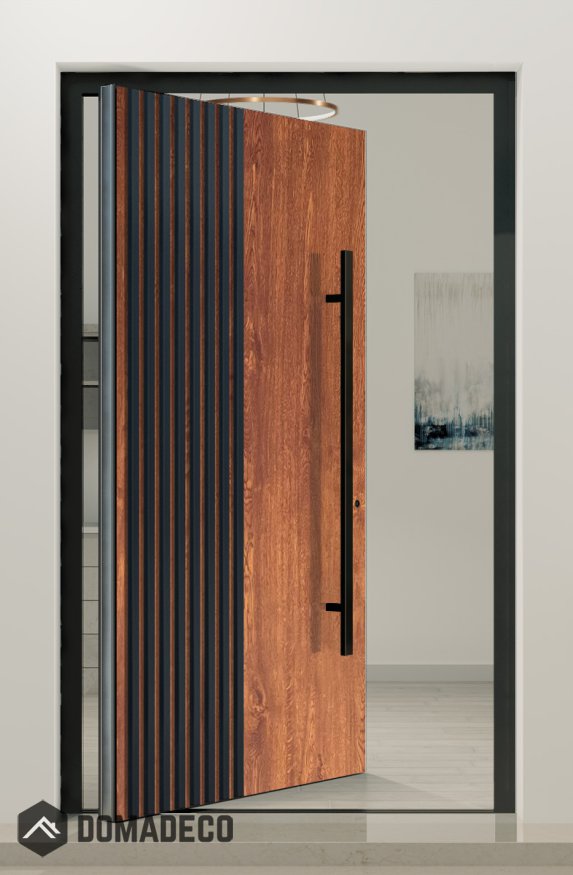

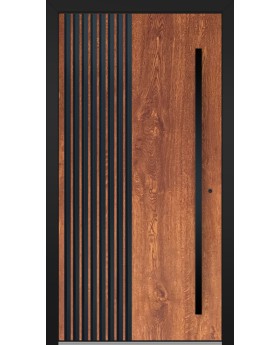

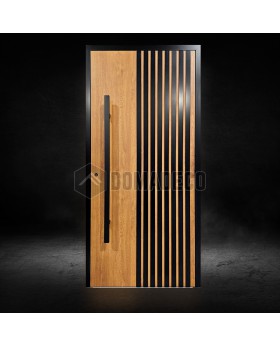

PIVOT RAIL6 - aluminium pivot door with black vertical slats made of aluminium profiles
The price includes VAT
Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 7 weeks
Size pivot door with frame:
Width from: 1400mm to 1800mm
Height from: 2000mm to 2940mm
You can order this door model in a smaller size. View LIM RAIL5
Domadeco Pivot doors represent the best doors the market can offer and deliver maximum comfort and security for the user, while allowing substantial architectural freedom with numerous design variants and scoring high on energy-efficiency.
The characteristic feature of this series is the use of appliques made of aluminium profiles with wood pattern.
Technical specifications
Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 1.1 W/K*m2
The door set includes:
- Aluminium pivot door and the door frame;
- long vertical handle / normal handle outside;
- the door handle inside;
- 3-part roller hinges in the same color as the door;
- FUHR 833 3-point lock
- low threshold door
- Standard lock insert with 5 keys.
The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.
The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check
We provide the installation of our front door in England. Installation costs extra and depends on the type of door.
