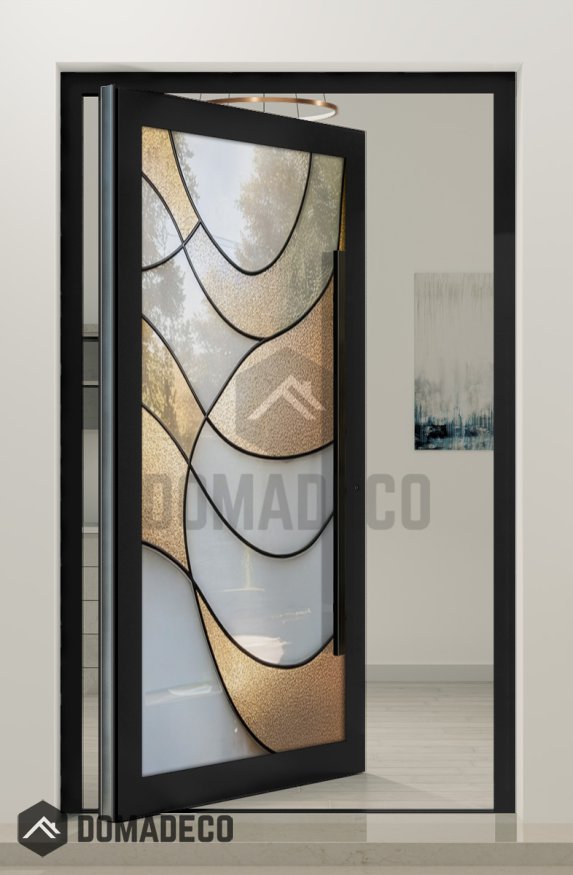

PIVOT SG3 - Customizable Stained Glass external aluminium pivot door

SKU
PIVOT SG3
Be the first to review this product
AVAILABLE
£8,580.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2600mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£8,580.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT SG3 - Customizable Stained Glass external aluminium pivot door
Your Rating

The PIVOT SG3 - Customizable Stained Glass External Aluminum Pivot Door is an exquisite blend of artistry and advanced engineering, designed to make a bold architectural statement while providing exceptional functionality and durability. This premium pivot door seamlessly integrates the timeless elegance of stained glass with the modern strength and versatility of aluminum, creating a truly unique entrance solution that enhances both the curb appeal and security of your home or commercial property.

At the core of the PIVOT SG3’s appeal is its fully customizable stained glass panel, which offers endless possibilities for personalization. Whether you envision intricate traditional motifs, vibrant contemporary designs, or subtle abstract patterns, each stained glass panel is meticulously crafted to your specifications, transforming natural light into a captivating display of color and texture. This artistic feature not only elevates the visual impact of your entrance but also provides privacy by softly diffusing outdoor light, creating a warm and inviting atmosphere inside.

The door’s structure is built around a high-quality aluminum frame, selected for its superior strength, corrosion resistance, and low maintenance requirements. Aluminum’s lightweight yet durable properties make it an ideal material for external doors, ensuring that the PIVOT SG3 performs reliably in diverse weather conditions without warping, rusting, or fading. The pivot mechanism is thoughtfully engineered to allow the door to swing smoothly on a central pivot point, rather than traditional side hinges. This innovative design not only adds a contemporary flair but also maximizes usable space and enables the creation of large-format doors that make a striking entrance.

Beyond its aesthetic and structural advantages, the PIVOT SG3 is designed with performance and security in mind. The stained glass panels are constructed from tempered or laminated safety glass, providing enhanced resistance to impact and breakage. The aluminum frame can be equipped with advanced weather seals and thermal breaks to improve insulation, reduce air infiltration, and maintain energy efficiency throughout the year. High-quality pivot hardware ensures smooth, quiet operation and long-lasting durability, maintaining perfect alignment and ease of use even after frequent opening and closing.

Customization extends well beyond the stained glass artwork. The aluminum frame is available in a wide variety of finishes and colors, allowing you to perfectly match or complement your building’s exterior palette. Additionally, you can select from a range of hardware styles and finishes to coordinate with your overall design theme, whether it be sleek and modern, classic and refined, or bold and artistic. This level of flexibility makes the PIVOT SG3 a versatile choice for architects, designers, and homeowners who seek a door that truly reflects their vision and enhances the character of their space.

In summary, the PIVOT SG3 - Customizable Stained Glass External Aluminum Pivot Door is more than just an entryway; it is a masterpiece that combines artistic expression with cutting-edge technology. Its customizable stained glass centerpiece invites natural light to dance through your space in dazzling colors, while the robust aluminum frame and precision pivot mechanism guarantee lasting performance, security, and ease of operation. Elevate your property’s entrance with the PIVOT SG3—where elegance, individuality, and superior craftsmanship come together to create an unforgettable first impression.
