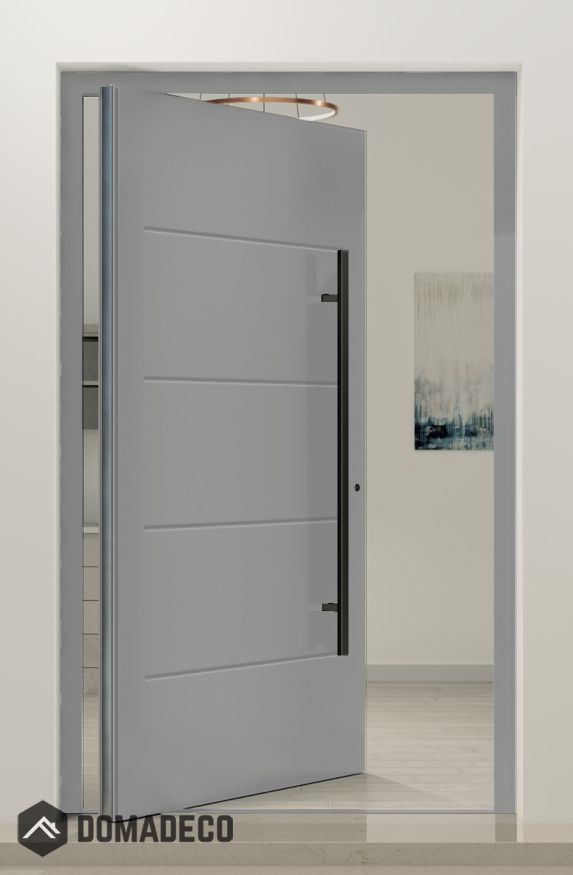

PIVOT W311 - aluminium Premium Pivot Door

SKU
PIVOT W311
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£6,370.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM W311

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,370.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT W311 - aluminium Premium Pivot Door
Your Rating

The PIVOT W311 Aluminum Premium Pivot Door is a cutting-edge entrance solution that seamlessly blends contemporary design with exceptional durability and performance. Engineered for architects, designers, and homeowners who prioritize both aesthetics and functionality, this premium pivot door offers a striking focal point for any modern residential or commercial space, elevating the overall ambiance with its sleek and sophisticated presence.

At the core of the PIVOT W311’s design is its innovative pivot hinge system, which allows the door to rotate smoothly around a central pivot point rather than using traditional side hinges. This unique mechanism provides a dramatic and elegant opening motion, creating a wide, flowing entryway that enhances accessibility and optimizes spatial efficiency. The pivot design not only adds an architectural statement but also offers greater flexibility in door size and weight, accommodating large-format panels that are often impractical with conventional hinged doors.

Crafted from high-quality aluminum, the PIVOT W311 boasts a lightweight yet robust frame that is resistant to corrosion, warping, and environmental wear. Aluminum’s inherent strength ensures long-lasting structural integrity, making this door ideal for a range of climates and settings. The premium finish options available for the door’s frame offer both aesthetic versatility and additional protection, allowing you to customize the look to perfectly complement your building’s exterior or interior design.

Energy efficiency is a standout feature of the PIVOT W311. The door incorporates advanced thermal break technology within the aluminum frame, significantly reducing heat transfer and enhancing insulation. This helps maintain comfortable indoor temperatures year-round, reducing reliance on heating and cooling systems and ultimately lowering energy costs. Complemented by a variety of high-performance glazing options—including double or triple-pane glass with low-emissivity coatings—the door delivers excellent thermal insulation, soundproofing, and UV protection, ensuring a comfortable and energy-efficient environment.

Security has been meticulously engineered into the PIVOT W311. The robust aluminum frame combined with reinforced pivot hardware and premium locking mechanisms provides a formidable barrier against unauthorized entry. Additionally, the door can be fitted with laminated or tempered safety glass options that offer enhanced resistance to impact and breakage, giving you peace of mind without compromising the door’s clean and modern aesthetic.

Customization is at the heart of the PIVOT W311 experience. Available in a wide range of finishes, colors, and glazing styles, this door can be tailored to suit diverse architectural styles—from minimalist modern to bold industrial or contemporary classic. Whether you desire a sleek monochrome finish or a vibrant color accent, the PIVOT W311 provides the flexibility to bring your design vision to life with precision and elegance.

Installation of the PIVOT W311 is designed to be efficient and precise, supported by expert technical assistance to ensure perfect alignment, smooth operation, and long-term durability. Its versatile design makes it suitable not only as a main entrance door for homes and commercial buildings but also as an impressive interior partition that enhances spatial flow and visual interest.

In summary, the PIVOT W311 Aluminum Premium Pivot Door represents the pinnacle of modern door technology, combining innovative pivot mechanics, durable and lightweight aluminum construction, superior energy efficiency, and extensive customization options. It is the ultimate choice for those seeking a secure, stylish, and high-performance pivot door that transforms any space into a contemporary architectural masterpiece.
