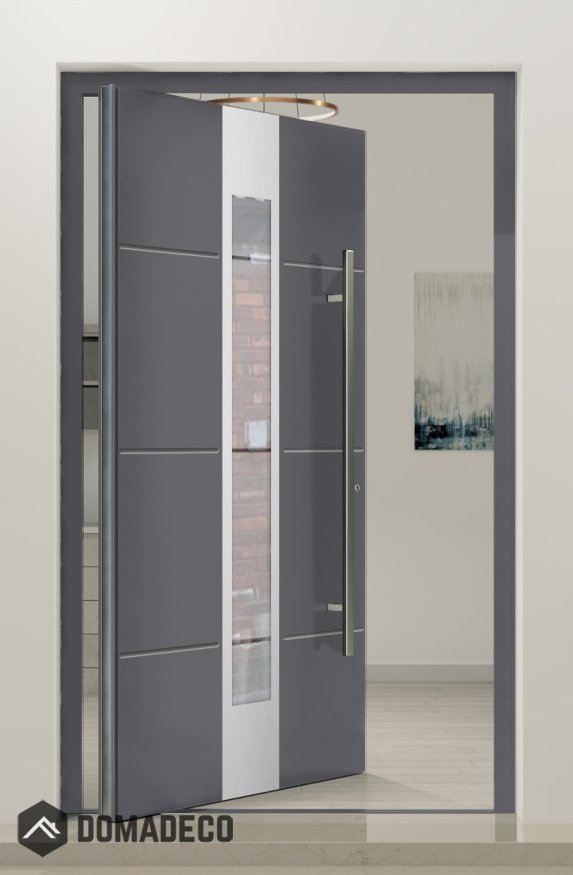

PIVOT W322 - aluminium exterior anti-burglary pivot door

SKU
PIVOT W322
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£6,520.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1401mm to 2000mm
Height from: 2000mm to 2940mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM W322

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,520.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT W322 - aluminium exterior anti-burglary pivot door
Your Rating

The PIVOT W322 aluminum exterior anti-burglary pivot door is a premier security solution designed to provide unparalleled protection while enhancing the aesthetic appeal of any building facade. Crafted with precision-engineered aluminum profiles and advanced pivot technology, this door system offers a seamless blend of strength, durability, and contemporary design, making it the ideal choice for residential, commercial, and institutional applications where security is paramount without compromising style.

At the core of the PIVOT W322 lies its innovative pivot mechanism, which allows the door to rotate smoothly around a fixed vertical axis rather than relying on traditional side hinges. This design not only enables the installation of larger and heavier door panels but also reduces the number of vulnerable points typically targeted in forced entry attempts. The pivot system ensures balanced, effortless operation regardless of door size or weight, delivering a striking architectural statement while maintaining exceptional functionality.

Constructed from high-quality aluminum, the PIVOT W322 boasts superior resistance to corrosion, weathering, and UV exposure, ensuring long-lasting performance in even the most demanding exterior environments. Aluminum’s inherent strength supports the integration of reinforced security features such as laminated or toughened glass, further enhancing the door’s protective capabilities. The slim yet robust aluminum frame maximizes glazing areas, allowing abundant natural light to permeate interiors while maintaining uncompromised security standards.

Security is the defining feature of the PIVOT W322. The door incorporates multi-point locking systems that engage at multiple locations along the frame, significantly increasing resistance to forced entry. Reinforced aluminum profiles and tamper-resistant pivot hardware add additional layers of protection, safeguarding against prying, drilling, and other common burglary techniques. When combined with high-performance security glazing options, the PIVOT W322 forms a formidable barrier that deters intruders while providing peace of mind for occupants.

Beyond security, the PIVOT W322 is designed with energy efficiency in mind. Advanced thermal breaks within the aluminum profiles minimize heat transfer, while premium weather seals reduce air infiltration, helping to maintain comfortable indoor temperatures year-round and lowering energy costs. Compatibility with double or triple-glazed insulated glass units further enhances thermal insulation and soundproofing, making this pivot door an excellent choice for environments seeking both security and sustainability.

Customization options for the PIVOT W322 are extensive, allowing architects and designers to tailor the door’s appearance and performance to meet specific project requirements. A wide selection of powder-coated finishes and colors ensures seamless integration with diverse architectural styles, while various handle designs and hardware finishes enable personalized touches that complement the overall aesthetic. This versatility makes the PIVOT W322 suitable for modern urban homes, upscale commercial buildings, and secure institutional facilities alike.

Maintenance of the PIVOT W322 aluminum exterior anti-burglary pivot door is both simple and efficient. Thanks to its corrosion-resistant aluminum construction and durable finishes, the door requires minimal upkeep—typically limited to routine cleaning to preserve its sleek appearance and ensure smooth operation. High-quality hardware components are engineered for longevity, reducing the need for frequent repairs and keeping maintenance costs low over the door’s lifespan.

In summary, the PIVOT W322 aluminum exterior anti-burglary pivot door stands as a sophisticated and robust entrance solution that harmonizes cutting-edge security features with elegant design and practical functionality. Its innovative pivot mechanism, reinforced construction, multi-point locking systems, and energy-efficient attributes combine to create a door that not only protects but also elevates the architectural integrity of any building. For those seeking a secure, stylish, and durable exterior door system, the PIVOT W322 represents an outstanding investment in safety and aesthetic excellence.
