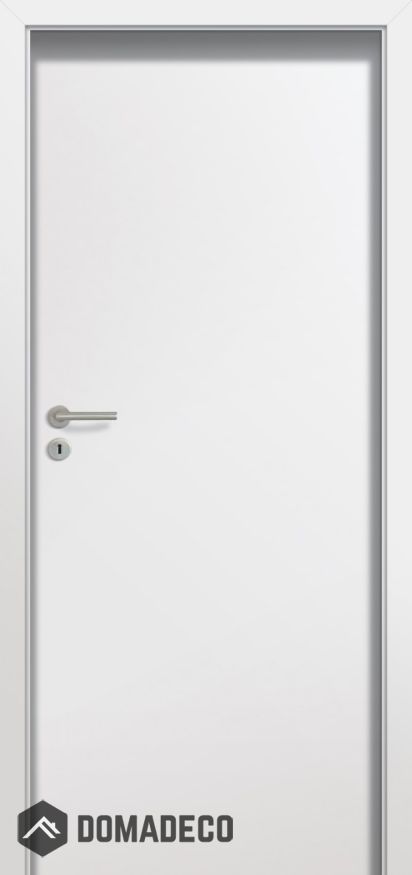

Plano CAM - simple white interior door

SKU
Plano CAM
Rating:
100 % of 100
AVAILABLE
£560.00

The price includes VAT

Click here to select the configuration

The door is made of a wooden rail and stile set topped with two flush HDF boards covered with ecological acrylic paint (RAL and NCS colour palette).
The core consists of a honeycomb-like stabilizing layer.

STANDARD EQUIPMENT

  • White matt or colourless transparent glass, 4 mm thick
  • Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
  • Hinges: B type

Standard door leaf size:

62 cm x 202 cm
72 cm x 202 cm
82 cm x 202 cm
92 cm x 202 cm

Required Installation hole width:

62 cm x 202 cm - 676mm min installation hole width / 786 mm - max installation hole width
72 cm x 202 cm - 776mm min installation hole width / 886 mm - max installation hole width
82 cm x 202 cm - 876mm min installation hole width / 986 mm - max installation hole width
92 cm x 202 cm - 976mm min installation hole width / 1086 mm - max installation hole width

Required Installation hole height:

min installation hole height: 2053 mm
max installation hole height: 2112 mm

Required thickness of your wall

min 75 mm
max 300mm

ADDITIONAL EQUIPMENT (at an extra charge)

  • Size “100” (glazing decoration as in “90”)
  • Size “110” (glazing decoration as in “90”)
  • Non-standard door shortening (maximum door shortening available: up to 100 mm) (shortened from the top)
  • Door lower by 50 mm or 100 mm
  • Door higher by 50 mm or 100 mm
  • Door higher by 150 mm or 200 mm
-
+
£560.00

The price includes VAT
