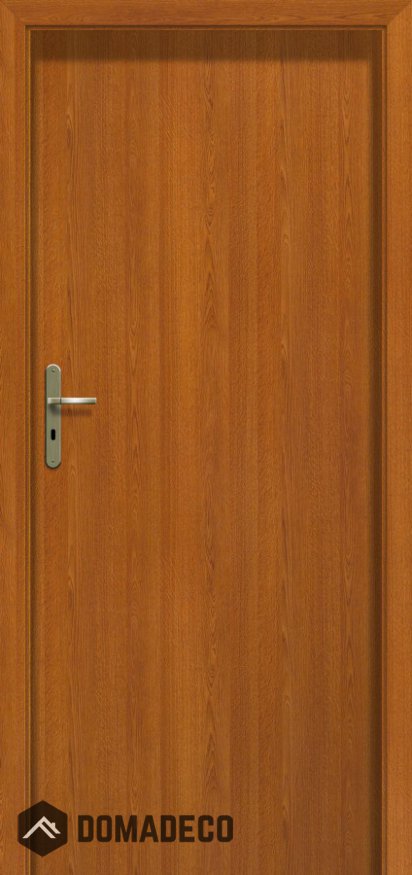

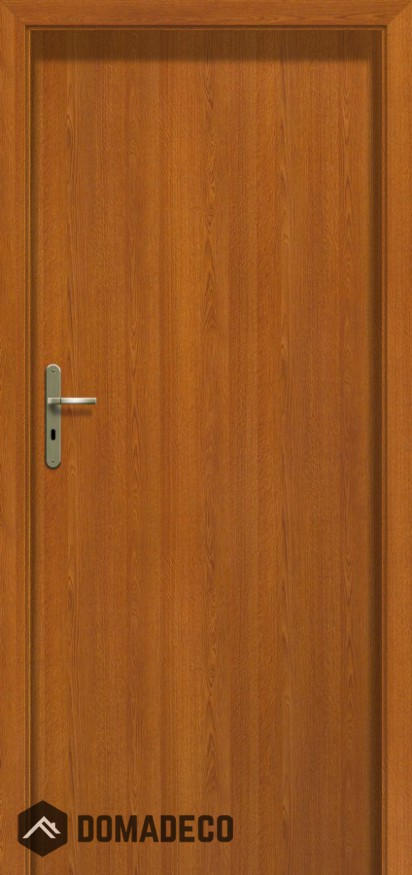

Plano DEC - wooden rail interior door

SKU
Plano DEC
In stock
£300.00
Overview

The door is made of a wooden rail and stail set topped with two flush HDF boards covered with the CPL laminate (0,2 mm, 0,5 mm or 0,7 mm thick).
The core consists of a honeycomb-like stabilising layer.

STANDARD EQUIPMENT

  • White matt glass or clear colourless transparent glass, 4 mm thick
  • Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
  • Hinges: B type

SIZE

"60" - 676mm min installation hole width / 786 mm - max installation hole width
"70" - 776mm min installation hole width / 886 mm - max installation hole width
"80" - 876mm min installation hole width / 986 mm - max installation hole width
"90" - 976mm min installation hole width / 1086 mm - max installation hole width

min installation hole height: 2053 mm
max installation hole height: 2112 mm

COLOUR:

221 beech CPL 0.2 mm, 222 grey CPL 0.2 mm, 223 cherry tree CPL 0.2 mm, 229 oak, 251 beech CPL 0.5 mm, 252 oak CPL 0.5 mm, 259 grey CPL 0.5 mm, 720 white CPL 0.7 mm, 721 anthracite CPL 0.7 mm, 765 wenge CPL 0.7 mm, 771 beech CPL 0.7 mm,  772 grey CPL 0.7 mm, 779 oak CPL 0.7 mm, 820 white CPL 0.2 mm, 821 anthracite CPL 0.2 mm, 863 premium walnut CPL 0.2 mm, 920 white CPL 0.5 mm, 921 anthracite CPL 0.5 mm, 965 wenge CPL 0.5 mm, 976 polish oak, 993 Royal anthracite, 994 royal ash tree, 995 royal merbau, 996 Polish ash tree, 997 royal nougat, cherry tree CPL 0.5 mm, cherry tree CPL 0.7 mm, Premium walnut CPL 0.5 mm, Premium walnut CPL 0.7 mm

REQUIRED THICKNESS OF YOUR WALL

min 75 mm
max 300mm

ADDITIONAL EQUIPMENT (at an extra charge)

  • Size “100” (glazing decoration as in “90”)
  • Size “110” (glazing decoration as in “90”)
  • Extra charge for CPL laminate 0.5 mm, 0.7 mm (“60”-“80”)
  • Extra charge for CPL laminate 0.5 mm, 0.7 mm (“90”-“110”)
  • Core made of a perforated chipboard
  • Core made of a solid chipboard
  • Rail and stile set (it allows shortening the door leaf to 50 mm on a do-it-yourself basis)
  • Rail and stile set (it allows shortening the door leaf to 90 mm on a do-it-yourself basis)
  • Reinforcement for door closer
  • Protection of the bottom rail and stile set against excessive humidity (not applicable to door leaves with ventilation trim)
  • Non-standard door shortening (maximum door shortening available: up to 100 mm)
  • Door lower by 50 mm or 100 mm
  • Door higher by 50 mm or 100 mm
  • Door higher by 150 mm or 200 mm
  • Ventilation trim
  • Tempered glass (02, 04, 05 versions)
-
+
