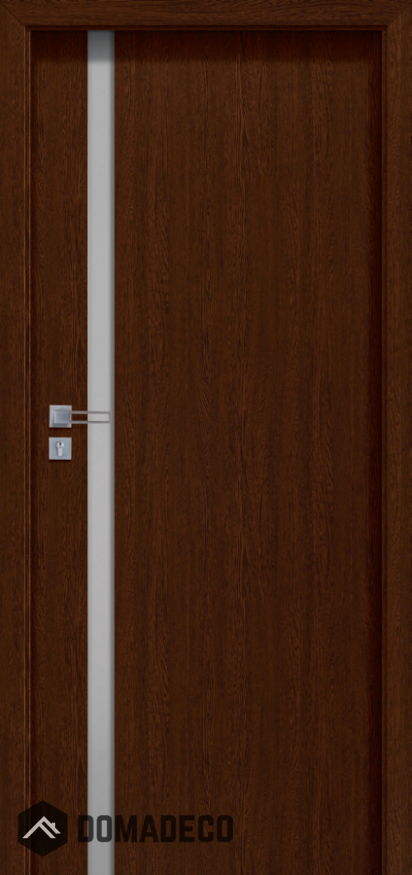

The door is constructed of a wooden rail and stile set topped with two HDF boards covered with natural veneer. The infill consists of a solid chipboard. A01, A02, A03 models are equipped with a white matt tempered glass, 6 mm thick. The upper edge of the door leaf has a rebate in rebated system.
STANDARD EQUIPMENT
- white matt tempered glass, thickness: 6 mm (A01 – 54 mm, A02 – 205 mm, A03 – 276 mm)
- single-point (rebated system) or magnetic (non-rebated system) mortise lock, key-operated, for a cylinder or a bathroom lock
- hinges: T type
Standard door leaf size:
618mm x 2077mm
718mm x 2077mm
818mm x 2077mm
918mm x 2077mm
Required Installation hole width:
618mm x 2077mm - 676mm min installation hole width / 786 mm - max installation hole width
718mm x 2077mm - 776mm min installation hole width / 886 mm - max installation hole width
818mm x 2077mm - 876mm min installation hole width / 986 mm - max installation hole width
918mm x 2077mm - 976mm min installation hole width / 1086 mm - max installation hole width
Required Installation hole height:
min installation hole height: 2053 mm
max installation hole height: 2112 mm
Required thickness of your wall
min 75 mm
max 300mm
COLOUR:
311 light oak, 312 limba, 323 rustic oak, 334 european oak, 340 ebony, 351 marrone, 371 truffle oak, 372 coffe oak, 376 steel oak, 377 platinum oak, 380 natural ash, 381 moreno ash, 382 rubio ash, 383 negro ash, 404 dark walnut, 405 light walnut, 421 cappucino, 422 mokka, 424 teak
ADDITIONAL EQUIPMENT (at an extra charge)
- size „100”
- A01, A02, A03 versions – door lower by 50 mm
- A01, A02, A03 versions – door higher by 100 mm
- A01, A02, A03 versions – door higher by 200 mm
- ventilation trim (not available in A02 and A03 models)
