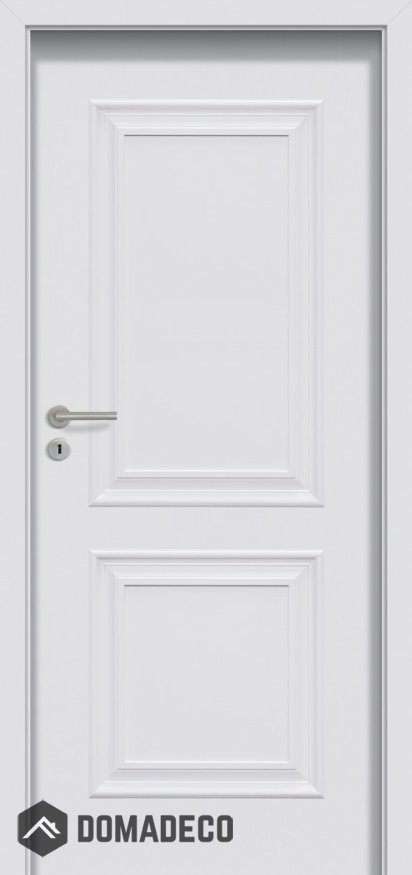

Plano INV - simple internal door
The door is made of a wooden rail and stile set topped with two HDF boards, covered with the LAMISTONE CPL, SILKSTONE surface.
The core is made of solid chipboard.
The leaf surface is decorated with spatial moulding.
- White matt tempered glass, 4 mm thick
- Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
- Hinges: K type
"60" - 676mm min installation hole width / 786 mm - max installation hole width
"70" - 776mm min installation hole width / 886 mm - max installation hole width
"80" - 876mm min installation hole width / 986 mm - max installation hole width
"90" - 976mm min installation hole width / 1086 mm - max installation hole width
min installation hole height: 2053 mm
max installation hole height: 2112 mm
REQUIRED THICKNESS OF YOUR WALL
min 75 mm
258 white, 276 polish oak, 289 grey, 295 royal merbau, 531 anthracite
Right hand (RH), Left hand (LH),
ADDITIONAL EQUIPMENT (at an extra charge)
- Size “100” (decoration as in “90”)
- Maximum available door shortening: up to 100 mm (symmetrical shortening from the top side and from the bottom side)
- Door lower by 50 mm or 100 mm
- Door higher by 50 mm or 100 mm
- Door higher by 150 mm or 200 mm
- Ventilation trim
