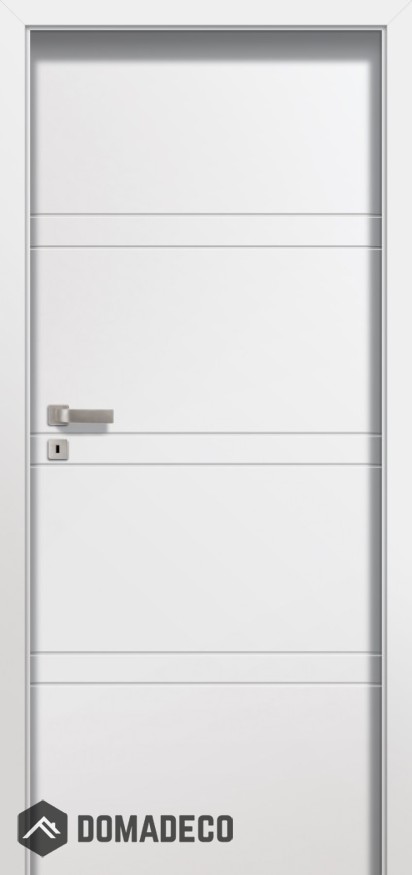

Plano SUB - leaf interior single door

SKU
Plano SUB
Rating:
100% of 100
In stock
£280.00
Overview

The door is made of a wooden rail and stile set topped with two HDF boards covered with ecological acrylic paint (RAL and NCS colour palette).
The core consists of a solid chipboard.
The door leaf is decorated with horizontal milling.

STANDARD EQUIPMENT

  • Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
  • Hinges: T type

Standard door leaf size:

618mm x 2077mm
718mm x 2077mm
818mm x 2077mm
918mm x 2077mm

Required Installation hole width:

618mm x 2077mm - 676mm min installation hole width / 786 mm - max installation hole width
718mm x 2077mm - 776mm min installation hole width / 886 mm - max installation hole width
818mm x 2077mm - 876mm min installation hole width / 986 mm - max installation hole width
918mm x 2077mm - 976mm min installation hole width / 1086 mm - max installation hole width

Required Installation hole height:

min installation hole height: 2053 mm
max installation hole height: 2112 mm

Required thickness of your wall

min 75 mm
max 300mm

ADDITIONAL EQUIPMENT (at an extra charge)

  • Size “100”
  • Non-standard door shortening (maximum door shortening available: up to 100 mm) (shortened from the top)
  • Door lower by 50 mm or 100 mm
  • Door higher by 50 mm or 100 mm
  • Door higher by 150 mm or 200 mm
-
+
