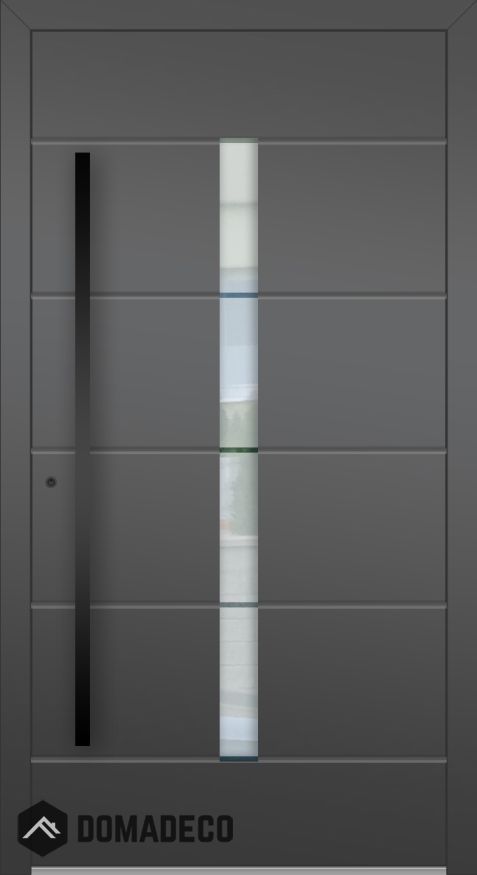

LIM AP16 - high performance modern aluminum entry door with glass

SKU
LIM ap16
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£3,420.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 900mm to 1550mm
Height from: 2000mm to 2860mm

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

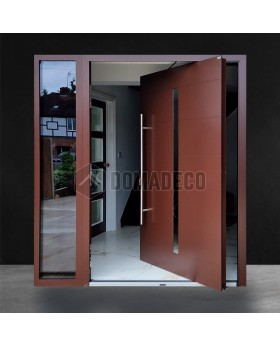

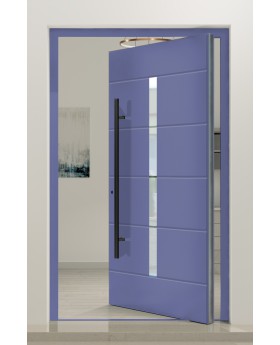

You can order this door model in a bigger size. View Pivot AP16

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 70 mm
Thermal insulation: Ud = 0.7 W/(m2*K)
Sound insulation: 30dB

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£3,420.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM AP16 - high performance modern aluminum entry door with glass
Your Rating

The LIM AP16 is a high-performance modern aluminum entry door with glass that seamlessly combines advanced engineering, sleek design, and superior functionality to create an exceptional entrance solution for contemporary homes and commercial spaces. Crafted with precision from premium aluminum, this door exemplifies durability and strength while maintaining a lightweight profile that enhances ease of use and installation. Its modern aesthetic, characterized by clean lines and minimalist detailing, makes the LIM AP16 an ideal choice for architects, designers, and homeowners looking to make a bold yet refined statement at their entryway.

At the heart of the LIM AP16’s design is its robust aluminum frame, engineered with thermal break technology to optimize energy efficiency. The thermal break acts as an insulating barrier within the frame, significantly reducing heat transfer between the interior and exterior environments. This feature not only helps maintain comfortable indoor temperatures year-round but also contributes to lowering energy consumption and costs. Coupled with precision-engineered weatherstripping and high-performance seals, the door effectively prevents drafts, moisture intrusion, and noise pollution, ensuring a comfortable and peaceful indoor atmosphere regardless of external conditions.

One of the defining features of the LIM AP16 is its expansive glass panel, which is available in a variety of high-quality options including tempered, laminated, double-glazed, and Low-E glass. These glass choices provide excellent safety, durability, and thermal insulation, meeting stringent building codes and performance standards. The large glass surface allows abundant natural light to flood the interior space, creating a bright and welcoming ambiance while maintaining privacy through optional frosted, tinted, or decorative glass treatments. This transparency not only enhances the architectural appeal but also fosters a strong connection between indoor and outdoor environments.

Security is a paramount consideration in the LIM AP16’s construction. The door incorporates reinforced aluminum profiles and heavy-duty hardware, including multi-point locking systems and tamper-resistant hinges, designed to provide robust protection against forced entry. The durable materials and precision engineering ensure long-lasting security without compromising the door’s sleek appearance or smooth operation. This balance of strength and style gives property owners peace of mind while elevating the overall aesthetic of the building.

Customization options are extensive, allowing the LIM AP16 to adapt to diverse design preferences and project requirements. The aluminum frame is available in a broad palette of powder-coated or anodized finishes, offering vibrant colors and subtle textures that can harmonize with any architectural style. Hardware choices, including handles and locks, can be selected to complement the door’s modern look while delivering ergonomic functionality. Whether specifying a bold contrast or a monochromatic scheme, the LIM AP16 provides the versatility needed to realize a unique and cohesive design vision.

Installation of the LIM AP16 is streamlined and efficient, supported by precisely engineered components that ensure perfect alignment and effortless operation. The door’s lightweight yet sturdy construction facilitates handling and reduces labor time, while its durable finishes and materials minimize maintenance needs. Designed to withstand harsh weather conditions and daily use, the LIM AP16 maintains its pristine appearance and optimal performance for years to come.

In summary, the LIM AP16 high-performance modern aluminum entry door with glass is an outstanding choice for those seeking a combination of contemporary style, exceptional durability, energy efficiency, and security. Its sleek aluminum frame, expansive customizable glass panels, and advanced engineering make it a powerful statement piece that enhances curb appeal and elevates the functionality of any entryway. Whether for residential or commercial applications, the LIM AP16 transforms entrances into elegant, secure, and inviting gateways that stand the test of time.
