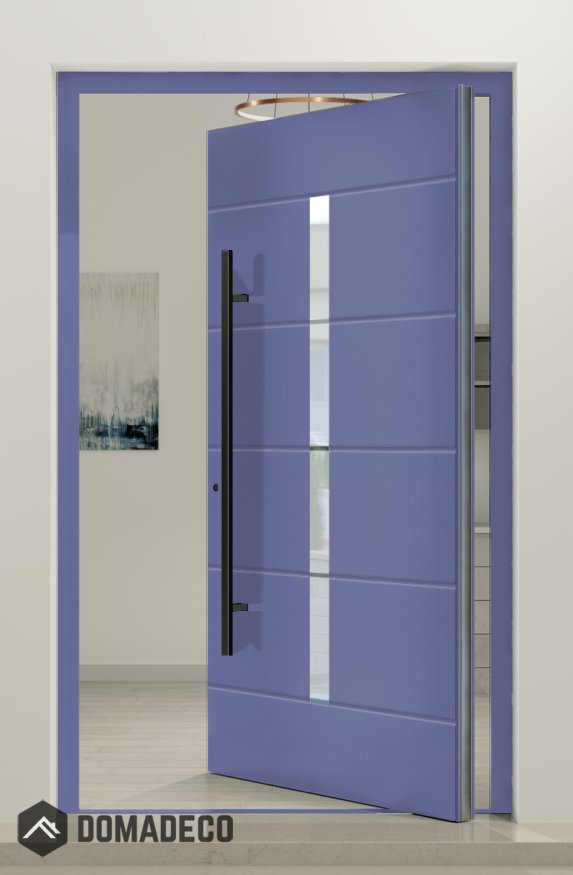

PIVOT AP16 - aluminium affordable pivot door

SKU
PIVOT AP16
Rating:
100 % of 100
2  Reviews Add Your Review
AVAILABLE
£6,520.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

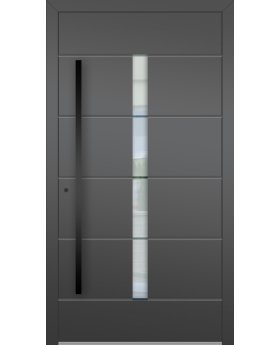

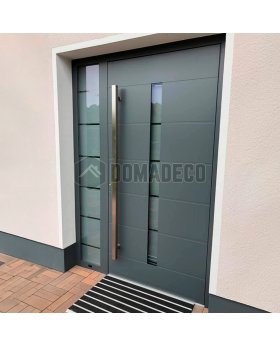

You can order this door model in a smaller size. View LIM AP16

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£6,520.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT AP16 - aluminium affordable pivot door
Your Rating

The PIVOT AP16 is an innovative and affordable aluminum pivot door designed to combine modern aesthetics, superior functionality, and budget-friendly pricing. Engineered to meet the needs of contemporary architectural projects, this door offers a striking alternative to traditional hinged doors, providing a seamless blend of style, durability, and ease of use that enhances both residential and commercial spaces.

Constructed from high-quality aluminum, the PIVOT AP16 features a robust yet lightweight frame that ensures exceptional strength and long-lasting performance. Aluminum’s natural resistance to corrosion, warping, and environmental wear makes this door ideal for a variety of climates and settings, delivering reliable functionality year after year. The material’s inherent durability also allows the door to accommodate larger sizes and heavier glass panels, enabling expansive openings that maximize natural light and create a welcoming atmosphere.

The defining characteristic of the PIVOT AP16 is its smooth and efficient pivot mechanism, which allows the door to rotate around a central or offset pivot point rather than swinging on traditional hinges. This design not only adds a contemporary architectural element but also optimizes space by reducing the door’s swing radius. The pivot system is engineered for effortless operation, providing a fluid motion that is both satisfying and practical, even for larger door panels. This mechanism also contributes to enhanced stability and longevity, ensuring the door remains balanced and secure through frequent use.

Aesthetically, the PIVOT AP16 offers a sleek, minimalist profile with clean lines and slim aluminum frames that complement a wide range of architectural styles—from ultra-modern and industrial to transitional and minimalist. The door’s customizable finish options, including powder coating and anodizing in various colors, enable designers and homeowners to tailor the appearance to match exterior palettes and personal preferences. Additionally, the door can be fitted with diverse glazing options such as clear, frosted, tinted, or laminated glass, allowing for customization in terms of privacy, light diffusion, and thermal performance.

Thermal efficiency and weather resistance are key features of the PIVOT AP16, making it a practical choice for energy-conscious projects. The door includes high-quality sealing systems and weatherstripping that minimize air and water infiltration, helping to maintain comfortable indoor temperatures and reduce energy consumption. These features ensure that the door performs well in different weather conditions, providing protection against drafts, moisture, and outdoor elements without sacrificing design integrity.

Security is another important aspect of the PIVOT AP16. The door incorporates reinforced aluminum profiles and reliable locking hardware to create a secure barrier against unauthorized entry. The precision engineering of the pivot mechanism and frame fittings ensures that the door remains tightly sealed and resistant to forced entry, giving users peace of mind without compromising on style or functionality.

Installation and maintenance of the PIVOT AP16 are designed to be straightforward and hassle-free. The door’s modular components and clear mounting system facilitate efficient installation, reducing labor time and costs. Once installed, the durable aluminum finish requires minimal upkeep, resisting fading, chipping, and corrosion over time. Routine cleaning is simple, allowing the door to maintain its fresh, modern look with little effort.

In summary, the PIVOT AP16 affordable aluminum pivot door is an exceptional solution for those seeking a modern, durable, and cost-effective entryway option. Its combination of innovative pivot hardware, customizable design, robust aluminum construction, and practical features delivers a high-performance door that enhances architectural aesthetics and functionality. Ideal for a wide range of applications, from private residences to commercial developments, the PIVOT AP16 stands out as a smart investment that brings style, security, and lasting value to any building project.
