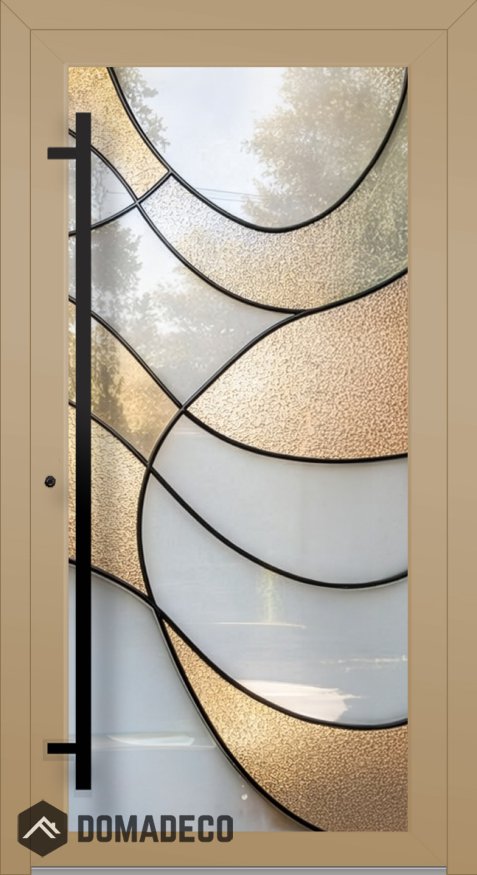

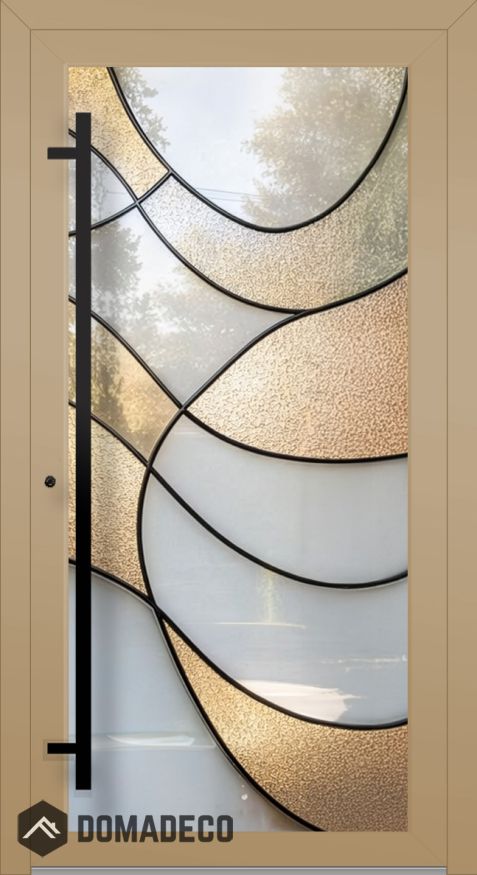

LIM SG3 - Customizable Stained Glass external aluminium hinged door

SKU
LIM SG3
AVAILABLE
£4,870.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 900mm to 1295mm
Height from: 2000mm to 2440mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a bigger size. View Pivot SG3

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 48 mm
Thermal insulation: Ud = 1.2 W/(m2*K)

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.

Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£4,870.00

The price includes VAT & shipping

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM SG3 - Customizable Stained Glass external aluminium hinged door
Your Rating

The LIM SG3 - Customizable Stained Glass External Aluminum Hinged Door is an exceptional entryway solution that artfully blends aesthetic elegance with robust functionality. Engineered for both residential and commercial applications, this door stands out by offering a unique fusion of customizable stained glass artistry embedded within a durable aluminum frame. Designed to enhance curb appeal while providing superior security and weather resistance, the LIM SG3 is the perfect choice for those seeking a distinctive and long-lasting entrance that reflects personal style and architectural vision.

At the core of the LIM SG3 door’s appeal is its customizable stained glass panel, which serves as a captivating centerpiece. Each panel can be tailored to your specific preferences, allowing you to incorporate intricate traditional designs, modern geometric patterns, or abstract art to complement your building’s overall aesthetic. The stained glass not only adds vibrant, colorful light effects to your interior spaces but also provides privacy by diffusing incoming light. This artistic feature transforms the door into a statement piece that elevates the character of your home or business.

Constructed with a high-quality aluminum frame, the LIM SG3 door offers exceptional strength and durability while maintaining a lightweight profile. Aluminum is renowned for its resistance to corrosion, rust, and the harsh effects of weather, making it an ideal material for external doors exposed to the elements. The hinged door mechanism ensures smooth and reliable operation, with the flexibility to customize dimensions to perfectly fit your entryway. This combination of materials and design guarantees longevity with minimal maintenance, providing peace of mind alongside beauty.

Safety and energy efficiency are paramount in the LIM SG3 design. The stained glass panels are crafted using tempered or laminated glass options, enhancing their impact resistance and overall security. The aluminum frame can be equipped with thermal breaks and advanced weather stripping, significantly improving insulation and reducing heat loss or gain. This helps maintain comfortable indoor temperatures while lowering energy bills. Furthermore, the door hardware supports multi-point locking systems, ensuring your property remains secure without compromising ease of use.

Customization does not stop with the stained glass design. The LIM SG3 offers a broad palette of powder-coated finishes for the aluminum frame, available in various colors and textures to harmonize with your building’s exterior. You can also select from a variety of hardware styles and finishes, from sleek, modern handles to classic, ornate designs, allowing you to create a cohesive and personalized look. This level of adaptability makes the LIM SG3 suitable for a wide range of architectural styles, from contemporary to traditional.

In summary, the LIM SG3 - Customizable Stained Glass External Aluminum Hinged Door is a perfect blend of artistic expression, structural integrity, and advanced functionality. It transforms ordinary entrances into captivating focal points that enhance both the beauty and security of your property. With its customizable stained glass artistry, durable aluminum construction, and thoughtful design features, the LIM SG3 sets a new standard for external hinged doors, making it a compelling choice for discerning customers who value quality, style, and performance.
