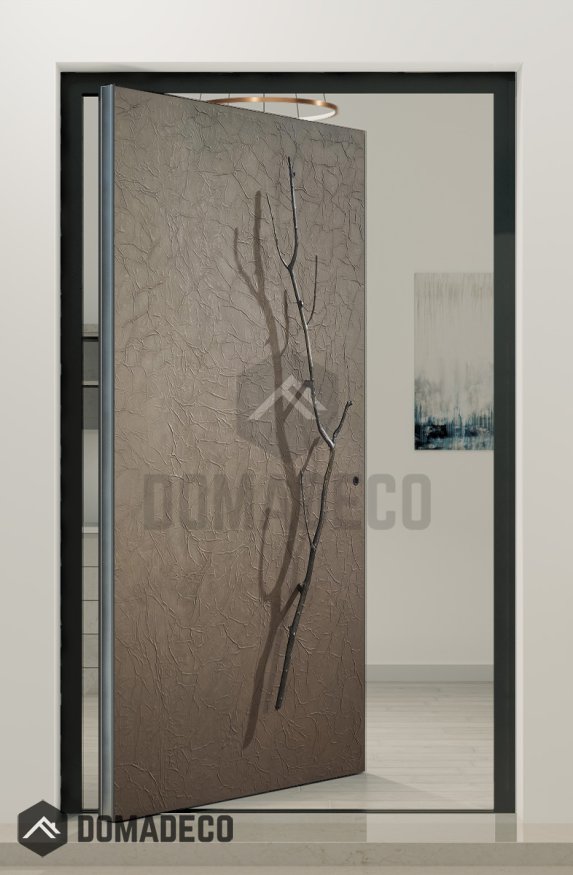

PIVOT M2 - Pivot exterior door coated with liquid metal

SKU
PIVOT M2
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£10,360.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM M2

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

-
+
£10,360.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT M2 - Pivot exterior door coated with liquid metal
Your Rating

The PIVOT M2 is a state-of-the-art pivot exterior door that redefines modern architectural design through its innovative mechanism and exceptional liquid metal coating. Designed to serve as a stunning focal point for any building’s entrance, this door combines cutting-edge engineering with premium materials to deliver unmatched durability, performance, and aesthetic appeal. Whether for residential, commercial, or institutional applications, the PIVOT M2 offers a bold and sophisticated solution that elevates the exterior façade with elegance and strength.

At the heart of the PIVOT M2’s design is its advanced pivot system, which allows the door to rotate smoothly around a fixed vertical axis, rather than swinging on traditional side hinges. This pivot mechanism not only enables effortless operation but also supports larger and heavier door panels that would otherwise be impractical with conventional hardware. The result is a dramatic and seamless opening experience that enhances both the form and function of the entrance, providing a spacious and inviting passageway while maintaining structural integrity and long-term reliability.

The door panel itself is crafted from high-quality materials selected for their robustness and suitability for exterior environments. What truly sets the PIVOT M2 apart is its exclusive liquid metal coating—a revolutionary finish that imparts a sleek, reflective metallic surface with a depth and luminosity that is both eye-catching and sophisticated. This liquid metal layer is engineered to provide exceptional resistance against scratches, corrosion, UV exposure, and harsh weather conditions, ensuring the door retains its striking appearance over time with minimal maintenance. The dynamic interplay of light on the liquid metal surface creates a unique visual effect that changes throughout the day, making the door a captivating architectural statement.

Beyond aesthetics, the PIVOT M2 excels in energy efficiency and environmental performance. Its frame incorporates advanced thermal break technology, which significantly reduces heat transfer and enhances insulation properties. When combined with optional high-performance glazing options—such as double or triple-pane low-emissivity glass—the door offers superior thermal regulation and soundproofing. This contributes to lower energy consumption and increased comfort inside the building, aligning with contemporary sustainability goals and green building standards.

Security is paramount in the design of the PIVOT M2. The door is fitted with heavy-duty pivot hardware and a robust multi-point locking system that provides reliable protection against forced entry. Additionally, laminated or tempered safety glass options further enhance security without compromising the door’s sleek and modern aesthetic. This ensures peace of mind for property owners while maintaining a refined appearance.

Customization is another hallmark of the PIVOT M2, offering architects and designers a versatile palette of options to tailor the door to specific project needs. It is available in various sizes, finishes, hardware styles, and glazing configurations, making it adaptable to a wide range of architectural styles—from ultra-modern minimalist designs to bold industrial or luxurious commercial facades. This flexibility allows the PIVOT M2 to seamlessly integrate into any building’s exterior while making a distinctive design statement.

Installation and maintenance of the PIVOT M2 are streamlined through professional support and thoughtfully engineered components. The door is designed for precise alignment and smooth operation, ensuring long-lasting performance and ease of upkeep. Its durable construction and protective liquid metal coating minimize the need for frequent maintenance, keeping the door looking pristine and functioning flawlessly for years to come.

In summary, the PIVOT M2 Pivot Exterior Door Coated with Liquid Metal is a transformative entrance solution that combines innovative pivot technology, superior material quality, stunning liquid metal aesthetics, energy efficiency, and enhanced security. It offers a durable, elegant, and highly functional door that elevates the architectural presence of any building while meeting the highest standards of performance and design.
