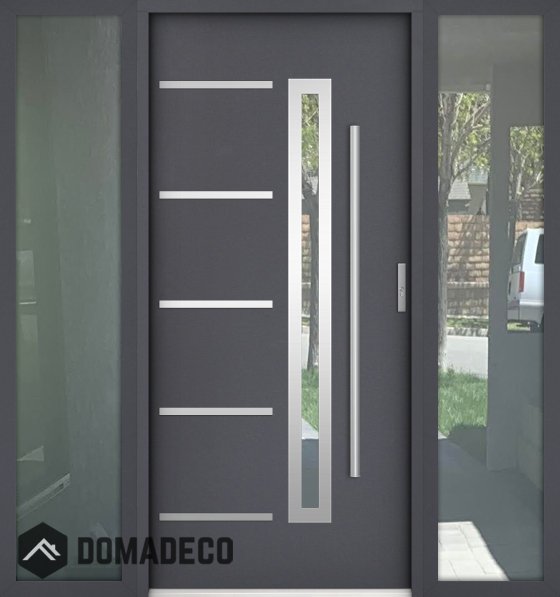

custom configuration - STA door with left and right sidelight (view from the outside)
Size:
1345x2091mm total size with frame (85cm door leaf + 20 cm + 20 cm sidelight)
1445x2091mm total size with frame (85cm door leaf + 25 cm + 25 cm sidelight)
1545x2091mm total size with frame (85cm door leaf + 30 cm + 30 cm sidelight)
1645x2091mm total size with frame (85cm door leaf + 35 cm + 35 cm sidelight)
1745x2091mm total size with frame (85cm door leaf + 40 cm + 40 cm sidelight)
1845x2091mm total size with frame (85cm door leaf + 45 cm + 45 cm sidelight)
1945x2091mm total size with frame (85cm door leaf + 50 cm + 50 cm sidelight)
1445x2091mm total size with frame (95cm door leaf + 20 cm + 20 cm sidelight)
1545x2091mm total size with frame (95cm door leaf + 25 cm + 25 cm sidelight)
1645x2091mm total size with frame (95cm door leaf + 30 cm + 30 cm sidelight)
1745x2091mm total size with frame (95cm door leaf + 35 cm + 35 cm sidelight)
1845x2091mm total size with frame (95cm door leaf + 40 cm + 40 cm sidelight)
1945x2091mm total size with frame (95cm door leaf + 45 cm + 45 cm sidelight)
2045x2091mm total size with frame (95cm door leaf + 50 cm + 50 cm sidelight)
1545x2091mm total size with frame (105cm door leaf + 20 cm + 20 cm sidelight)
1645x2091mm total size with frame (105cm door leaf + 25 cm + 25 cm sidelight)
1745x2091mm total size with frame (105cm door leaf + 30 cm + 30 cm sidelight)
1845x2091mm total size with frame (105cm door leaf + 35 cm + 35 cm sidelight)
1945x2091mm total size with frame (105cm door leaf + 40 cm + 40 cm sidelight)
2045x2091mm total size with frame (105cm door leaf + 45 cm + 45 cm sidelight)
2145x2091mm total size with frame (105cm door leaf + 50 cm + 50 cm sidelight)
available custom height from 2000mm to 2091mm
available custom width from 1345mm to 2145mm
Colour: winchester, golden oak, walnut, wenge, dark anthracite, white
Opening way: Right hand (RH) - opening to inside, Left hand (LH) - opening to inside, Right hand reverse (RHR) - opening to outside, Left hand reverse (LHR) - opening to outside
T-bar (long vertical handle): YES, NO
Electronic Opener T-bar (button + electric strike + power supply): only Straight T-bar
Letterbox: YES, NO
Construction:
The door is made of stainless steel. Inside it is filled with PUR polyurethane foam and wood. The thickness of the door leaf is 73mm. Dual sealing system - one seal is in the dap of the frame and the other is located in the supporting part of the door leaf. They reduce vibration and protect your house from losing the heat. They don't change their volume under the influence of atmospheric conditions. The door frame has anti-burglar reinforcements in hinge parts and locking points.
The door set includes:
- Door and the door frame with two gaskets;
- Two independent locks (multi-point locking mechanism) providing anti-burglary security solutions;
- Two sets of inserts with the keys;
- Normal door handle (T-bar long handle as an additional option);
- Viewfinder (in the case of solid doors);
- 6x adjustable hinges (3x on each side) that provide anti-burglary protection;
- Aluminium threshold with the gasket;
- 3x anti-theft bolts.
Thermal and soundproof specification:
- for a full door leaf with 73 mm thickness, at Ud = 0,85 W/K*m2
- for glazed door leaf with 73 mm thickness, at Ud = 1.3 W/K*m2
- acoustic insulation 25 dB (applies to doors without glazing)
- glass doors are made of triple glazing packages.
The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.
The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be up to 2 cm.
Frequently Asked Questions: click here to check
We provide the installation of our front door in England. Installation costs extra and depends on the type of door.
