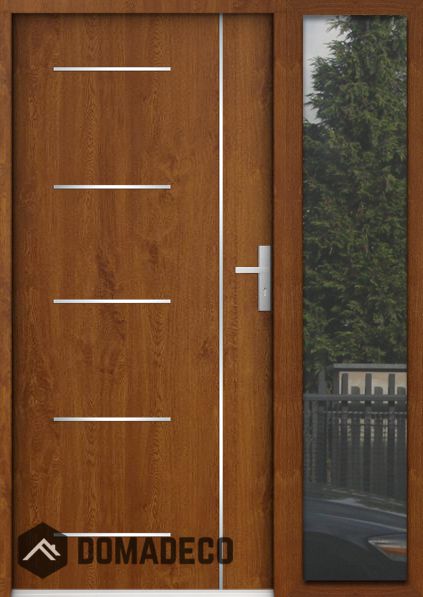

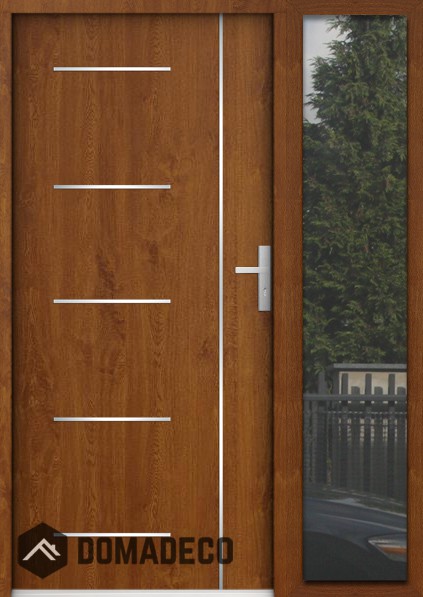

custom configuration - STA steel door with right sidelight / glass panel (view from the outside)

SKU
STA door with right sidelight
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
£1,850.00

The price includes VAT & shipping

Click here to select the configuration

Production time for our doors:
door named STA with glass panel  - production takes 7 weeks
door named FARGO (stainless steel) - production takes 8 weeks
door named LIM (aluminium) - production takes 7 weeks

Door width with frame:
915mm (82cm door leaf)
945 mm (85cm door leaf)
1015mm (92cm door leaf)
1045 mm (95cm door leaf)
1145mm (105cm door leaf)

Door height with frame:
from: 2000mm to 2091mm

Glass panel width with frame:
from 200 mm to 500 mm

Available door colors:
anthracite, white, black, silver gray, red, blue, golden oak, walnut, wenge, bleached oak, concrete, turners oak, corten, mahogany

Full door information

LIST OF STA DOOR TYPES

-
+
£1,850.00

The price includes VAT & shipping

Wish List
Email
We found other products you might like!

Profile construction


Construction:

The door is made of stainless steel. Inside it is filled with PUR polyurethane foam and wood. The thickness of the door leaf is 73 mm / 2.9". Dual sealing system - one seal is in the dap of the frame and the other is located in the supporting part of the door leaf. They reduce vibration and protect your house from losing the heat. They don't change their volume under the influence of atmospheric conditions. The door frame has anti-burglar reinforcements in hinge parts and locking points.
  • frame depth: 43 mm / 1.7"
  • leaf/slab depth: 73 mm / 2.9"

The door set includes:

  • - Door and the door frame with two gaskets;
  • - ROTO locking system (strip lock) with an independent upper lock and three reinforced anti-theft bolts;
  • - Two sets of inserts with the keys;
  • - Normal door handle (T-bar long handle as an additional option);
  • - Viewfinder (in the case of solid doors);
  • - 3x adjustable hinges that provide anti-burglary protection;
  • - Aluminium threshold with the gasket;
  • - 3x anti-theft bolts.

Thermal and soundproof specification:

  • - for a full door leaf, at Ud = 0,85 W/K*m2 / R-Value = 7.1
  • - for glazed door leaf , at Ud = 1,1 W/K*m2 / R-Value = 5,7
  • - acoustic insulation 25 dB (applies to doors without glazing)
  • - glass doors are made of triple glazing packages.

Dimensions and real pictures of the door threshold from the Sta collection


Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Bronze Reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours



Golden Oak

Winchester

Walnut

Wenge

turners oak

Black

smooth anthracite RAL 7015

dark anthracite RAL 7016

white

abbys blue

calm salvia

july blue

twilight green

marble red

Door handle inox - silver

Door handle black

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




T-bar Straight, circular shape 1200 mm / 47.2"

T-bar Straight, rectangular shape 1600 mm / 59.0"

YES, round arch silver 1200 mm / 47.2"

Lever Handle vs T-bar Pull Handle

1. If you have a Lever handle/normal handle from the outside, you can release the latch without using a key from outside. You simply push the Lever handle down and the latch will retract allowing you to open the door.

2. If you have a T-bar long handle from the outside, it has no way to release the latch because it is only used for pushing and pulling the door. So in this situation from the outside you always need keys to re.lease the latch. Then insert the keys into the key hole and turn to release the latch and open the door.

3. We offer a third additional option if the customer decides to purchase a T-bar. When selecting the T-bar on our website, you can additionally order a Knob Handle that will be installed together with the T-bar from the outside. This door Knob Handle will allow you to release the latch from the outside. So you can order Tbar + Knob which is quite small and looks quite nice.

Multi-point lock system

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

How measure the hole in the wall for door installation

The picture shows the dimensions of the door with the frame and how to measure the opening for door installation. Please take the measure from the floor "tile or wooden panel" inside the house to the top brick level.

The space for the door installation should be between minimum 5mm to 20mm larger than the overall size of the door with the frame. This space is necessary as it should be filled with foam during the installation. This will also ensure insulation between the wall and the door frame.

Write Your Own Review
You're reviewing:custom configuration - STA steel door with right sidelight / glass panel (view from the outside)
Your Rating

The STA Steel Door with Right Sidelight and Glass Panel, viewed from the outside, stands as a bold and elegant statement of security, style, and craftsmanship. This entryway solution is meticulously designed to combine the robust strength of a premium steel door with the inviting transparency of a right-side sidelight featuring a glass panel, creating a perfect balance between durability and aesthetic appeal that instantly elevates the exterior of any residential or commercial building.

From an exterior vantage point, the STA steel door immediately captures attention with its solid, formidable presence. Constructed from high-quality steel, the door is built to withstand harsh weather conditions and potential security threats, offering peace of mind without compromising on visual appeal. The surface of the door is finished with a sleek, smooth coating that resists rust, scratches, and fading, ensuring long-lasting beauty and performance. Available in a wide array of customizable colors and finishes, the door can be tailored to harmonize with various architectural styles, whether modern, industrial, or traditional, enhancing the overall curb appeal.

Positioned to the right of the door, the sidelight with its glass panel adds a sophisticated touch that softens the solid steel’s boldness while maximizing natural light entry. The glass panel is expertly crafted from tempered or laminated safety glass, guaranteeing strength and security against breakage. Depending on the desired level of privacy and design, the glass may be clear, frosted, tinted, or embellished with decorative patterns, providing flexibility to meet both functional and stylistic preferences. This transparency allows for a glimpse into the interior while maintaining a protective barrier, creating a welcoming ambiance without sacrificing security.

The sidelight frame perfectly complements the STA steel door, both in material and finish, ensuring a seamless, cohesive look from the outside. The vertical glass panel extends alongside the door’s height, creating an elegant juxtaposition between the opaque steel and the translucent glass. This design not only enhances the visual depth of the entrance but also invites natural daylight to brighten the interior space, reducing the need for artificial lighting during the day.

Attention to detail is evident in the robust framing and weatherproofing elements visible from the exterior. The door and sidelight are encased in a strong, precisely engineered frame designed to minimize drafts and resist moisture infiltration, contributing to energy efficiency and indoor comfort. The weatherstripping is discreet yet effective, maintaining the sleek exterior lines while protecting the building from the elements.

Security features are prominently integrated and visible from the outside, including reinforced hinges and multi-point locking mechanisms that provide formidable resistance to forced entry. The hardware—such as handles, locks, and door viewers—can be selected in finishes that complement the door’s overall design, ranging from brushed nickel to matte black or polished brass, further enhancing the door’s aesthetic appeal.

Overall, the STA Steel Door with Right Sidelight and Glass Panel, as viewed from the outside, is much more than just an entrance—it is a harmonious blend of strength, style, and sophistication. It offers property owners a visually striking yet secure gateway that enhances both the exterior appearance and the functionality of their building. Whether used for residential homes seeking an impressive and safe front door or commercial properties requiring a professional and durable entryway, this door setup delivers exceptional performance and timeless elegance.
