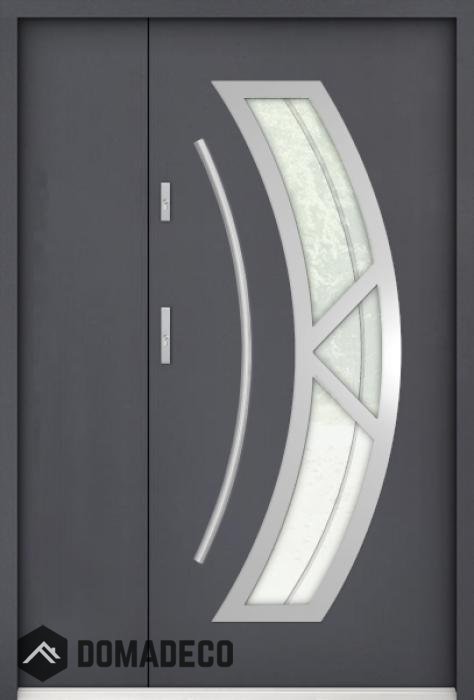

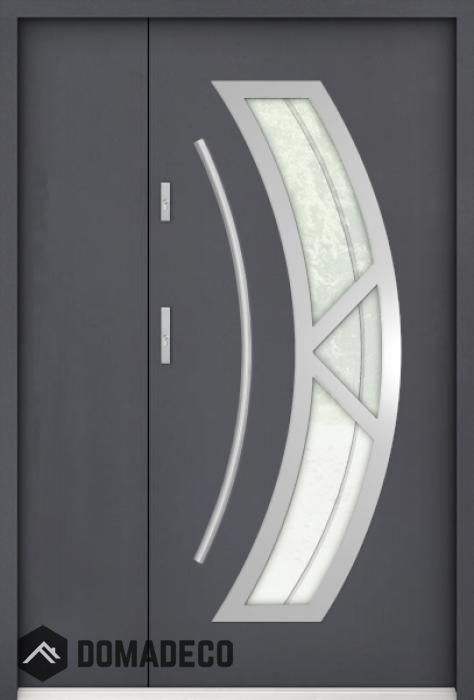

Sta Orion Uno - exterior door with side panel

SKU
Orion Uno
Rating:
80 % of 100
AVAILABLE
£1,390.00

The price includes VAT & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named STA (stainless steel) - production takes 6 weeks
door named FARGO (stainless steel) - production takes 9 weeks
door named LIM (aluminium) - production takes 7 weeks

Size:

1207x2082mm total size with frame (80cm door leaf + 30cm side panel)
1307x2082mm total size with frame (80cm door leaf + 40cm side panel)
1407x2082mm total size with frame (90cm door leaf + 40cm side panel)
1507x2082mm total size with frame (90cm door leaf + 50cm side panel)

1207x2030mm total size with frame (80cm door leaf + 30cm side panel)
1307x2030mm total size with frame (80cm door leaf + 40cm side panel)
1407x2030mm total size with frame (90cm door leaf + 40cm side panel)
1507x2030mm total size with frame (90cm door leaf + 50cm side panel)

available custom height from 2000mm to 2082mm
available custom width from 1207mm to 1507mm

Construction:
The door is made of stainless steel. Inside it is filled with PUR polyurethane foam and wood. The thickness of the door leaf is 55mm. Dual sealing system - one seal is in the dap of the frame and the other is located in the supporting part of the door leaf. They reduce vibration and protect your house from losing the heat. They don't change their volume under the influence of atmospheric conditions. The door frame has anti-burglar reinforcements in hinge parts and locking points.

The door set includes:
- Door and the door frame with two gaskets;
- Two independent locks (multi-point locking mechanism) providing anti-burglary security solutions;
- Two sets of inserts with the keys;
- Normal door handle (T-bar long handle as an additional option);
- Viewfinder (in the case of solid doors);
- 3x adjustable hinges that provide anti-burglary protection;
- Aluminium threshold with the gasket;
- 3x anti-theft bolts.

Thermal and soundproof specification:
- for a full door leaf with 55 mm thickness, at Ud = 1.2 W/K*m2
- for glazed door leaf with 55 mm thickness, at Ud = 1.5 W/K*m2
- acoustic insulation 31 dB (applies to doors without glazing)
- glass doors are made of triple glazing packages.

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

Full door information

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.

Frequently Asked Questions: click here to check

We provide the installation of our front door in England. Installation costs extra and depends on the type of door.

The panel in this door is openable

-
+
£1,390.00

The price includes VAT & shipping
